NANOCHEM - WeldAssure - Gas Purifiers

NANOCHEM OMX resin also offers efficient removal of hydrocarbons, such as compressor oils, in the gas. A new inorganic media, NANOCHEM ln2Go prevents piping system contamination in the event of a major system upset, such as significant air intrusion or from the accidental connection of an improper cylinder to the purifier. NANOCHEM MSA media is designed to purify Ar/02, Ar/C02 and other 02, C02 blends. Only WeldAssure purifiers specifically labeled for oxygen or carbon dioxide applications can be used for purifying O2 and CO2 blends.

NANOCHEM WeldAssure purifiers are an economical solution for GMAW (TIG) welding and other critical welding applications.

• Flow Rates up to 100 cfh (47 slpm)
• Available in 150 ml and 500-ml sizes - Aluminum canister
• 300 ml size - Stainless steel canister
• Easy to use canister bypass mode for canister changes and extended shutdowns
• Reliable endpoint detection to indicate when canister is spent
• Field replaceable canisters available
• 300-ml stainless canister can be refilled, enabling savings over purchase of spare canisters

• Low cost of ownership

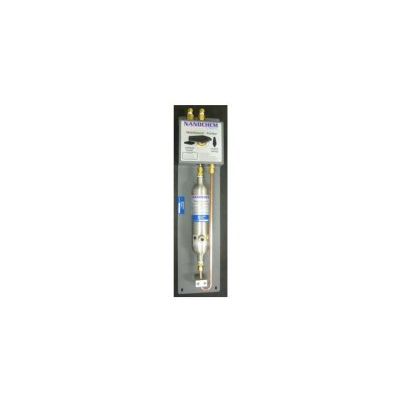

• Wall mount frame easy to install and operate
• Removes impurities to < 10 ppb (Dew Point = -150°F)
• Enhances weld quality, strength and appearance
• Reduces weld porosity and oxidation
• Visual endpoint detection
• No guessing when to replace purifier canister
• Color change in viewing window indicates 80% of purifier is spent
• Increases weld electrode lifetime
• Do not need to stop welding to grind or replace electrode
• Reduces weld rejects
• Built-in Bypass around purifier canister
• Enables purging of gas lines (without purifier deactivation during cylinder changeout)
• Check valve at purifier outlet
• Prevents deactivation of purifier from back diffusion of atmospheric air when gas flow (and welding) is stopped
• Filters at canister inlet and outlet
• Operates at room temperature
• No power requirements
• New NANOCHEM3 ln2Go,M Inorganic Media
• Prevents contamination from system upsets, such as air intrusion or connection of wrong gas cylinder
• Field Replaceable Canister
• New Stainless Canisters can be refilled
• Savings over cost of replacement canister
• Reduction in generation of solid waste

NOTE: Endpoint detection not available for Ar/Oz or Ar/COa gas blends.

• Flow Rates up to 100 cfh (47 slpm / 2.8 NM3/hr)
• Gases Purified (with OMX or ln2Go):
• Argon, helium, nitrogen, hydrogen, inerts and gas blends of
• these constituents (4N purity or better)
• Impurities removed (with OMX or ln2Go):
• Moisture, oxygen, carbon monoxide, carbon dioxide,
• Nitrogen oxides, sulfur oxides, hydrogen sulfide, others NOTE: OMX-Plus also removes hydrocarbons
• CO is more efficiently removed by ln2Go
• Gases Purified (with MSA Media):
• Argon / CO2, Argon / O2, Inerts / CO2 blends
• Impurities removed with (MSA media):
• Moisture, hydrocarbons
• Maximum operating temperature 65°C(170°F)
• Maximum operating pressure 200 psig (1.48 MPa)
• Materials of Construction:
• Canister (150 ml & 500 ml) Aluminum 6061-T6
• Canister (300 ml) Stainless Steel, Type 304
• Valves & Fittings Naval Brass

Connections

• Purifier: Swagelok Vi" brass female NPT fittings Canister: Swagelok VA brass male Compression fittings

GTAW (TIG), GMAW (MIG), PAW (Plasma) and LBW (Laser Beam) welding applications and welding overlays with GMAW and PTAW (Plasma Transferred Arc). Aerospace, nuclear, petrochemical, pharmaceutical, petroleum drilling, ship-building, and other manufacturing industries.

NOTE: NANOCHEM L-Series and MegaShield Purifiers with all stainless construction recommended for higher flow rates and for very clean welding in semiconductor and pharmaceutical applications. Maximum flow rates: 150 slpm (300 cfh) for L-Series and 1000 slpm (2000 cfh) for MegaShield Purifiers.
