Young & Franklin Inc. (YF)

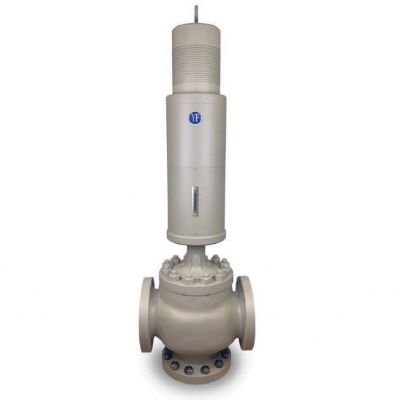

Young-Franklin - Model 8662 Series -Gas Splitter / Transfer Valve
YF’s proven line of Electro-Mechanical Actuators (EMA) is designed to be a drop-in replacement of OEM supplied hydraulic actuators used on DLN splitter and transfer valves. YF’s Digital Motor Controller (DMC) accepts the existing -8mA to +8mA servo commands, eliminating command.
Most popular related searches
transfer valve
shock and vibration
gas valve
position indicator
hydraulic actuator
electric actuator
gas controller
gas control
control valve
EMAS
- Command 4-20 mA Position or Velocity, -8 to +8 mA Triple Redundant Velocity
- Independent Feedback (Optional): Up to 2 LVDTs
- Ambient Temperature Range: -4°F to 212°F (-20°C to 100°C )
- Environmental: MIL-STD-810 – Shock and Vibration
- Ingress Protection: IP65 for EMA, IP54 for LVDTs
- Mean Time Between Service -Actuator: 96,000 Hours
- Visual Position Indicator: Yes
- Total EMA Only Weight (lbs.): 128
- Certifications: Class 1 Div 2, Group B, C & D, T3
