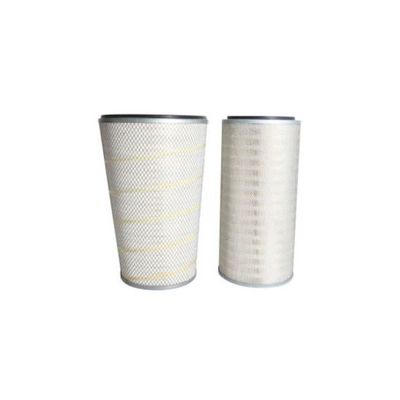

Usha - Gas Turbine Air Inlet Filter
USHA Gas turbine filters are characterised by their superior filtration properties. The synthetic and Cellous media is progressively constructed, which makes for a high particle interception level. This guarantee low pressure drop and reduced energy consumption. USHA Gas turbine filters are available in the range of (F8, F9).
Most popular related searches
gas turbine air intake filter
air intake filter
gas filter
gas turbine air filter
air filter
air intake
turbine air filter
gaskets
dust testing
air filtration
- Large surface area
- High dust holding capacity and retention capacity
- Long filter life time
- Low energy consumption
- Electricity generation Power Plants
- Type: Conical / Cylindrical
- Frame: Galvanized steel / SS 304 / Zin coated
- Separators: Holt melt
- Sealant: 2 component polyurethane / Epoxy
- Filter Media: Cellulose and polyester (80/20) optional with nano fiber coating / PP
- Gasket: Optional - Neoprene rubber gasket / EPDM Foam gasket / Food grade gasket
- Filter Class: As per EN779:2012, SAE J726 / ARAMCO 32- AMSS -08
- Air Flow: 1100 CFM (As per the size of filter and velocity through which air passes)
- Filter Efficiency: More than 99.7% with AC Fine test dust
- More than 99.9% with AC Coarse test dust
- (NaCl capture efficiency more than
- 99.95%)
- IPD: Less than 25 mm wg
- FPD: Maximum 100 mm wg per set
