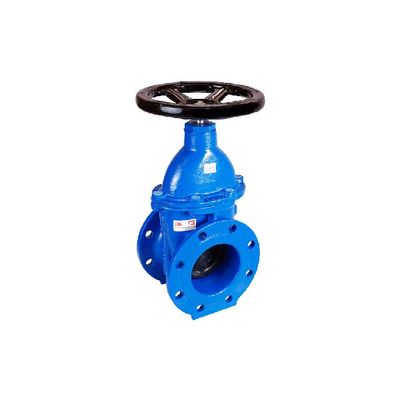

AB Valves - Gate Valve, Soft Sealing Type, Resilient Seat

• Body material is from cast iron (GGG) and wedge is fully covered by NBR or EPDM. Spindle material is stainless steel. valve is designed such a way that provide safe sealing. By turning the stem clockwise, with the elastic design of the sealing wedge gives absolute tightness with minimum torque.

All casting parts are coated with epoxy powder RAL 5015 or 5005 by electrostatic method.

Mirab soft sealing gate valves are used for closing and opening fluid flow. The Gate valves soft sealing can be used for fluids up to 70°C such as drinking water and untreated water and also compressed air per Certificate DVGW-G260 (Other media on request). Application fields are water supplies, dams, water treatment, pumping stations, pipe lines, industries, power plants, waste water and irrigation.

• Hydrostatic test pressure (bar) according to DIN EN 12266-1
• Pressure drop coefficient when the valve is fully open.
• Product Group : Gate Valves (GV)،
• Fields of Application : fire protection network, water transmission, irrigation, wastewater, power plants, industrial applications, water distribution network
• Medium : sea water, raw water, potable water, warm water, oil, wastewater
• Body : Ductile Cast Iron
• Disc : Ductil Cast Iron/Rubber Coated،
• Sealing : NBR/ EPDM
• Temperature : up to 70°C
• Size (mm) : 50 – 500
• Pressure (bar) : 6- 16
