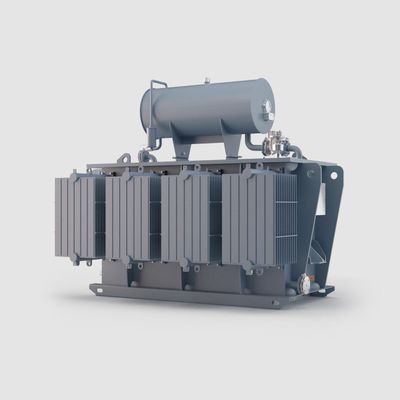

GBE - Oil Reactors
FromGBE S.p.A.
The use of a core depends on the reactor application. Filled with PCB-free oil that has been dried and degassed, and complies with IEC standards. Made with circular cross-section, with pure cellulose paper conductor insulation. Corrugated or with radiators made from stamped cold-rolled steel.
Most popular related searches
- Power: up to 20 MVAr
- Voltage class: up to 145 kV (BIL 650)
- Core: CRGO (if provided)
- Windings: aluminium or copper
- Cooling: ONAN, ONAF, OFWF, ODWF or ODAF
- Oil type: mineral, Midel 7131, vegetable, silicone
- Switching: no-load, on-load (OLTC)
- Ambient temperature: -60°C to +60°C
- Accessories: Overpressure valve, thermometer, oil level, vibration damping, protective casing and more.
- Strong points: Outdoor installation even in aggressive environmental conditions; no insulation level limits, limited magnetic field emissions.
