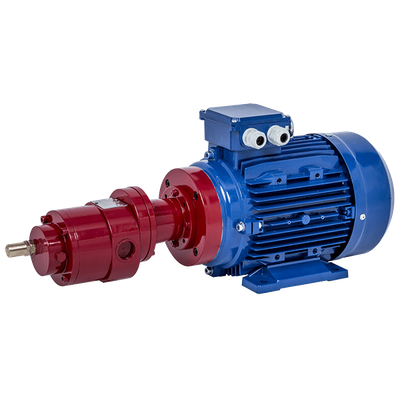

Pompe-Cucchi - Model S/SK/SM Series -Gear Metering Pump
Pompe Cucchi has created this new series of gear pumps made from steel bars in order to obtain high quality pump bodies with the total absence of cracks and/ or casting defects. The construction of this series of gear pumps complies with the 2006/42/CE, 2014/30/UE, 2014/35/UE directives and with the UNI EN ISO 12100, UNI EN ISO 13732-1, UNI EN 809, UNI, EN ISO 14847 standards. On request, versions compliant with the 2014/34/EU (ATEX) directive and with API 676 – NACE MR0175 standards; it is also available with EAC (CU TR 010) – CU TR 012 certification.
The quality system of Pompe Cucchi S.r.l. operates in accordance with the UNI EN ISO 9001: 2015 standard.
The S, SK series is used in numerous sectors in the transfer of liquids with viscosities from 1 to 100,000 Cps. In the case of medium/high viscosity products, it can be used for metering services with the aid of frequency variators or motor variators, also electrically servo-controlled with a 4 ÷ 20mA signal or pneumatically with a 3 ÷ 15 psi signal.
The main applications of the S/SK/SM series drag transfer pumps are:
CHEMICAL SECTOR
The transfer and metering of any type of liquid with the absence of solid suspensions.
FOOD INDUSTRY
The transfer of liquids in the primary transformation processes - pumping of chocolate – fats jams etc.
AGRICULTURAL SECTOR
The pumping of molasses and other liquid products for animal feeding.
INDUSTRIAL SECTOR
The pumping of glues, resins, bases, acids, isocyanates, polyiols etc.
All models are provided with Gas threaded ports or weld-on connections, and can be integrated with ANSI or DIN flanges. On request, versions with a built-in safety valve and preheating chambers are available.
The version in AISI 316L stainless steel has an anti-wear-anti-seize-up heat treatment that makes the component parts of the pump black (“black treatment”). For food applications it is possible to insert FDA certified “FC” plastic gears, leaving the parts in AISI 316L unaltered.
