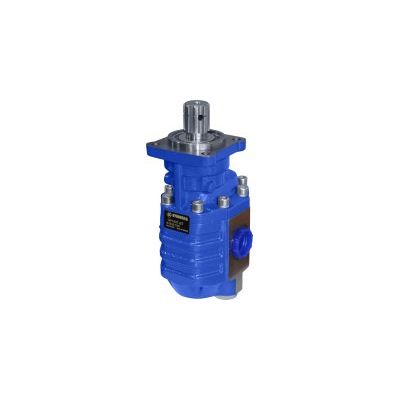

Hydrosila - Model Series T -Gear Pumps

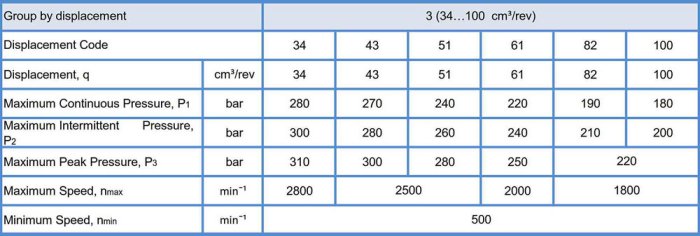

Displacement - 34...100 cm3.Rated pressure - 18-28 MPa (180-280 bar).Max. rotational speed - 1800-2800 rpm.SeriesT gear pumps are manufactured with installation dimensions according to ISO standard. May be of right, left and bidirectional rotation.The main characteristic of these pumps is low sensitivity to axial and radial loads which permits to drive the pump using a pulley or a drive gear (spur or helical) installed on the pump shaft.Housing and covers for seriesT pumps are made of cast iron.The pumps are applied on dump trucks, truck mounted boom lifts.
