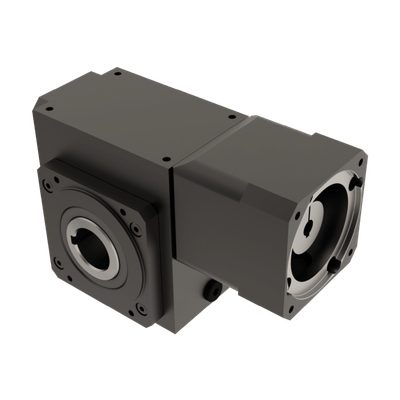

Cone Drive - Model Series W -Gearbox for High Speed Precision Motion Control Applications
The Series W gearbox by Cone Drive is engineered to meet the rigorous demands of high-speed precision motion control applications. At the core of this compact gearbox is Cone Drive’s proprietary double enveloping worm gearing, which is reinforced by two high-speed angular contact bearings. This robust design allows for exceptional torque capacity and durability. The gearbox is available in configurations with standard, low, or zero backlash, accommodating a wide range of technical requirements. Key features include double enveloping worm gearing for increased contact and load capacity, two input bearings, zero backlash bellows coupling, and an aluminum housing. The Series W gearbox is also engineered for optimal performance with approved lubricants and operates within a specified temperature range to prevent overheating. It comes with a best-in-class lead time and is backed by a five-year warranty. The product is well-suited for applications where high precision and reliability are critical, offering customizable solutions to meet various application needs.Most popular related searches
The Series W gearbox is designed for your most demanding motion control applications. Tucked inside of this compact gearbox is Cone Drive’s double enveloping worm gearing supported by two high speed angular contact bearings. Offered with either standard, low, or zero backlash, the Series W offers a wide range of customization.
- Double Enveloping Worm Gearing
- Two Input Bearings
- Zero, Low, or Standard Backlash
- Angular Contact Ball Bearings (Input)
- Aluminum Housing
- Zero Backlash Bellows Coupling
- Best in Class Lead Times
- 5 Year Warranty
- Center Distance: 38 thru 89 mm
- Ratio: 5:1 thru 60:1
- Nominal Backlash: 0 – 24 arcmin
- Output Torque (ConstantSpeed): < 10,800 lb-in
- Output Torque (Acceleration): < 11,700 lb-in
- Input Shaft: Single or double extended
- Output Shaft: Solid (single or double extended), Hollow, Shrink Disc
- Lubricant: Factory filled with synthetic lubricant
- I.P. Rating: IP 65
