Geared Motors
Our extensive range of geared motors ensures that you will find the optimal product for your needs. With the new Innomotics Geared motors you will benefit especially from its ability to deliver the highest level of flexibility due to our wide range of gear units, total adaptability and compact design. We also supply servo geared motors for Motion Control applications.

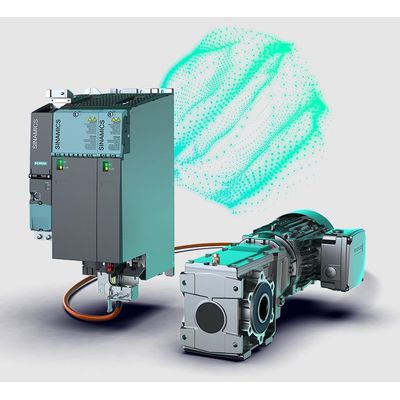

We are introducing the new Converter World Motor Innomotics that is fully compatible to SINAMICS frequency converters. It is a geared motor with IE3 efficiency class, optimized for converter operation and available in a power range from 0.37 kW to 55 kW. It is a "world motor" – which means it has one motor winding as standard for all of the major global certificates of approval. The motor is optimized for all line voltages from 380 V up to 480 V, therefore always ensuring maximum performance. Needless to say, it is integrated into tools such as the TIA Portal, TIA Selection Tool and Drive Technology Configurator.
Innomotics explosion-protected geared motors
Innomotics explosion-protected geared motors – Available now in an integrated version.
Innomotics explosion-protected geared motors can be operated in hazardous zones. Safety is of paramount importance in these types of environments, and these efficient motors can safely operate under extreme conditions for long periods of time. They are based on rugged, premium quality motors that have been tried and tested worldwide. The result is a seamless range of motors addressing customer requirements with a maximum degree of safety and the highest operational efficiency. We have expanded the explosion protected portfolio to include an integrated version where an adapter is not required. For applications in Zone 2 (gas) and Zone 22 (dust), an adapter is not required between the motor and gearbox – thus reducing the complexity and making dimensioning and selection easier.
Innomotics reluctance geared motors
They are easy to service thanks to the synchronous-reluctance solution therefore representing an excellent choice when selecting a drive system with high energy efficiency.
The synchronous-reluctance solution can be applied in many different domains, and it has many important technical benefits when compared to standard asynchronous motors. These motors maintain a stable speed even without encoder, and it is also possible to achieve a high permanent overload in the higher speed range.
The system is typically used to control roller, chain and belt conveyors in airport baggage and cargo handling facilities. It is also a great fit for warehouses and distribution logistics including packaging and mail handling areas. It is commonly used in hoisting equipment, scissor lift tables and monorail conveyors as well as for skids used in the automotive industry.
Innomotics expands its portfolio of servo geared systems when offering a new coupling adapter especially designed for SIMOTICS servomotors. It is a flexible solution which enables connection to the various Innomotics gear unit types with defined SIMOTICS servomotors. It is both adaptable and compact. This solution enables to link different gear unit types to various SIMOTICS servomotors rather than using a separate dedicated adapter for each motor, so it radically simplifies handling. The benefits of the adapter solution itself include shorter downtimes and lower costs due to simple installation and removal, optimized stock keeping and a backlash-free design enabling connection with no feather key as standard for high-precision
applications. The solution is particularly suited for use in applications involving stringent demands in terms of precision, positioning, dynamics, compactness and weight.
