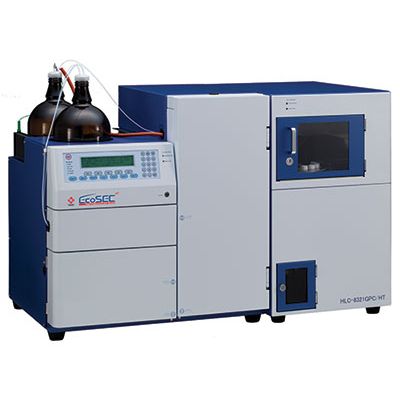

Tosoh EcoSEC - Model HT -Gel Permeation Chromatography (GPC) System
Demanding high temperature polymer analyses, such as for polyolefins, require a system that delivers results reliably, reproducibly, and produces these results in an easy to use, safe instrument. The EcoSEC® High Temperature GPC System incorporates the proven design and technology used in our ambient EcoSEC Elite® GPC System. The dual pump system, dual flow RI detector, spacious column oven, total system temperature control, autosampler, sample prep station, safety features, and all-in-one design controlled by intuitive software combine to deliver exceptional performance.
The EcoSEC® High Temperature GPC System features:
- Reliability
- Reproducibility
- Stability
- Safety
- All-in-one design
- Ease of use
What is unique about the EcoSEC® High Temperature GPC System?
- Dedicated system that is easy to use and is ready when you are
- Dual flow RI detector, delivering unparalleled RI baseline stability
- Total system temperature control, resulting in accurate flow rates and reproducible molar mass determinations with consistent results from run-to-run, day-to-day, and system-to-system

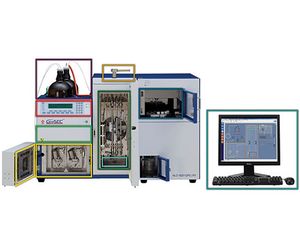

Click on the individual component links below for more detailed information.
|
Solvent Reservoir Tosoh Bioscience can tailor a system to meet your application needs. |
The EcoSEC® High Temperature GPC System Workstation Software offers unparalleled versatility and includes these features:
- GPC-specific EcoSEC® High Temperature GPC System software to simplify system control and data handling
- Controls up to 2 EcoSEC® High Temperature GPC Systems
- Excellent data handling and report generation
- Fully featured data handling system; analyze data from two detectors
- Start and stop system automatically
- One license for multiple locations
Software features include:
TSKgel® polystyrene bulk calibration standards are used to calibrate GPC columns for subsequent analysis of unknown samples. The standards range from 400 to 2.1 × 107 Da.
TSKgel® H series GPC columns are recommended for the analysis of organic-soluble polymers and are packed with spherical particles composed of polystyrene cross-linked with divinylbenzene (PS-DVB). The TSKgel® HT columns are for high temperature applications (≤ 140 °C) while the TSKgel® HT2 columns are used in ultra-high temperature (up to 220 °C) applications.
The figure below demonstrates the performance stability of the TSKgel® GMHHR-H HT columns compared to other commercially available high temperature GPC columns during repetitive temperature changes. The TSKgel® HHR HT columns and two commercially available high temperature GPC columns were subjected to drastic changes in temperature by raising the temperature for 2 hours followed by lowering the temperature for two hours for a total of 60 cycles. The number of theoretical plates was shown to remain constant for the TSKgel® HHR HT columns and to decrease by 15% for the two commercially available high temperature GPC columns; thus revealing the superior performance stability of the TSKgel® HHR HT columns.
