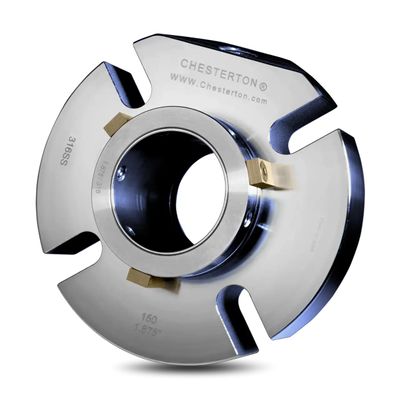

Chesterton - Model 150/150L -General Duty Single Cartridge Seal
Simple Installation & Increased Reliability for General Duty Applications. Designed for upgrading equipment sealed with packing or component style mechanical seals, the 150 single seal makes general industry sealing simple, reliable, and affordable. With a compact cartridge profile designed to fit standard ANSI/ISO process pumps, the seal is engineered to install easily and reliably. The single screw clamp lock ring design (150L) further increases efficiency and reduces installation error.
Most popular related searches
- Economical upgrade from packing and component seals
- Field repairable cartridge design
- Engineered gland annulus increases cooling and improves seal reliability
- Size Range: 25 mm to 120 mm (1 inch to 4.75 inch )
- Standards and Approvals: ISO-3069-S, ISO-3069C, ASME B73.1, ASME B73.2, NSF61, ACS
- Variants: Single Screw, Clamp Lock Ring
Materials
- Springs: EN 2.4819 (Alloy C-276)
- Faces: CB, TC, SSC
- Metals: 316SS, EN 1.4401, Other Metallurgies available on request
Operating Conditions
- Pressure Limit Vacuum: 711 mm Hg Vacuum ( 28 in Hg vacuum )
- Pressure Limit Rotating: 300 PSIg ( 20 BARg )
- Speed Max: 25 m/s ( 4000 fpm )
- Temperature Max: 400 °F ( 200 °C )
- Temperature Min: -20 °F ( -30 °C )
Notes: Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult Chesterton Mechanical Seal Engineering.
