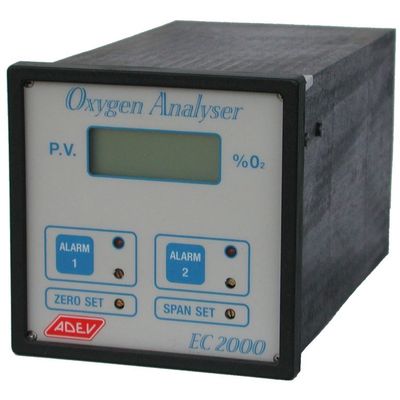

ADEV - Model EC2000 -General Purpose, Cost-Effective Oxygen Analyser
EC2000 series is the entry level of O2 product range for the measurement of Oxygen in % range. Nevertheless, the cell has long operative life and high immunity to the presence of CO2, H2, HC and many other gases in the background. Simple and reliable solution to measure O2 in both safe and hazardous area (ATEX) Zone 1 / Zone 21
- Oxygen [O2]
Cost-Effective Solution
- Low cost and excellent performance for this kind of instruments
- Fast response time
- Long lasting cell with high immunity to the presence of high quantities of CO2, H2, HC and others into the background
Very Easy to Use
- Digital read out with high-resolution 3½ digits display in mobile virgule
- Two alarms with field selectable threshold
- Front adjusting for easy calibration and settings
Easy Maintenance
- Very easy plug-in replaceable cell
- Easy calibrating by trimmers on front panel
European Compliance
- Low Voltage Directive 2014/35/EU
- EMC Directive 2014/30/EU
- Directive ATEX 2014/34/EU
ATEX
ATEX certification for Zone 1 / Zone 21 with protection mode:
- II 2 G Ex d IIC T6 Gb
- II 2 D Ex tb IIIC T85°C Db IP65
Performance
- Accuracy: ± 1% of span at calibration point
- Resolution: 0.01% O2 below 10.00% O2.
- Stability: ± 1% of span
- Cell Life: More than 2 years in air
- Display: 3 ½ digits LCD display with14 mm high characters and mobile virgule
Operative
- Output: 4-20 mA isolated proportional to 100% of range on maximum load of 500 Ω.
- Alarms: 2 alarms with SPDT contact ratings: 50 Vdc / 250 Vac; 0,5-4 A, 60 W / 1000 VA
- Sample Flow Rate 0 ÷ 5000 cc/min. with vent to atmospheric pressure (typical 1000 cc/min.)
- Sample Pressure provide sufficient flow pressure to let the sample circulate at the indicated flow rate without restrictions to vent
- Operative Temperature 0 ÷ +45°C
- Storage Temperature 0 ÷ +45°C
- Relative Humidity 90% max.
- Power Requirements 220 / 110 Vac; 50/60 Hz; 10 VA - 24 Vdc, 5 W
- Wiring Connections Customer terminal board on back panel
- Pneumatic Connections In / Out 1/8” NPT-F
- Wetted Parts Anticorodal flow chamber connections
- Weight about 1 kg.
- Dimensions Max.: 96 x 96 x 163 mm (+ 30 mm)
- Cut out: 90 x 90 mm Cut out: 90 x 90 mm
- Gas mixers
- Nitrogen generators
- Biogas and landfill gas
- Inerting
- Gas production industry
- Laboratories
- Air separation plants
- Chemical industry
- …. and many others
The EC2000 needs an external sampling system able to deliver an almost clean sample gas to the analyser at the proper temperature, pressure and flow rate.

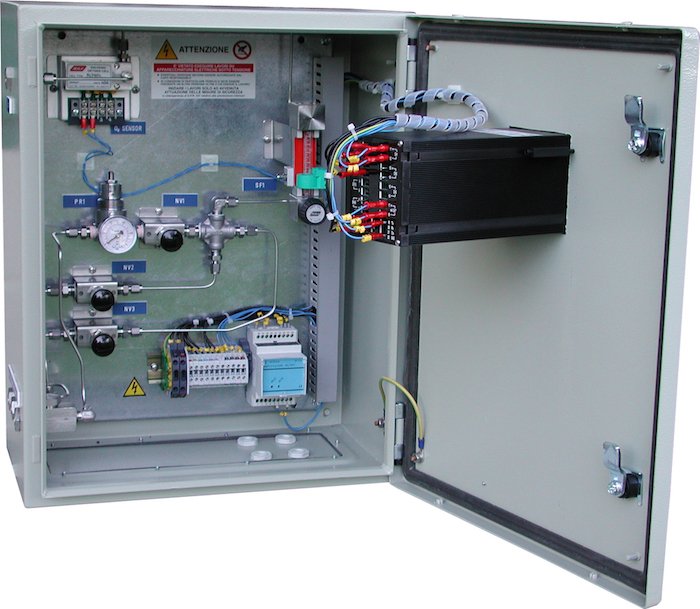

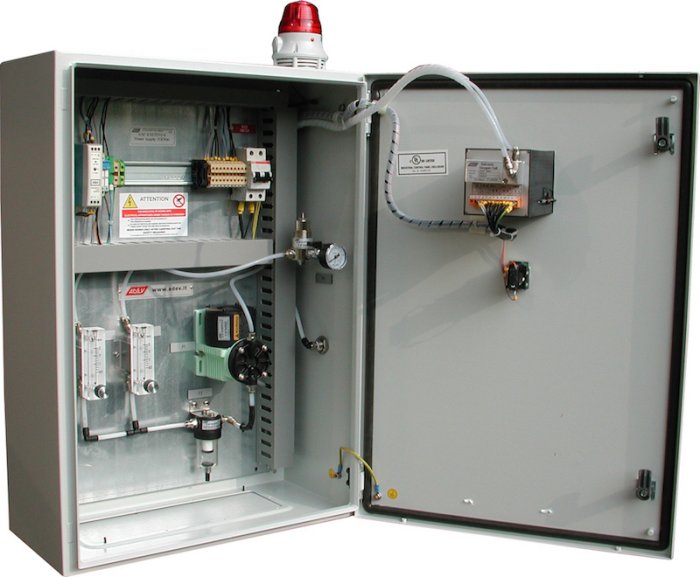

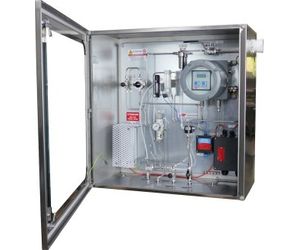

ADEV has a wide experience in process and can provide the EC2000 analyser combined with a sample and condition system designed for the specific application requirements. Contact ADEV for details.
