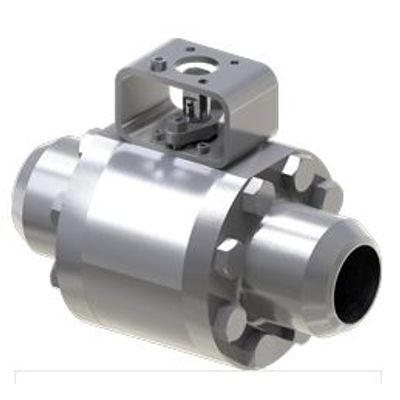

Mogas - Model G-Series -General Service Ball Valve
The G-Series valve is a general service, uni-directional ASME 600 Class full-bore valve for drain and vent applications with clean, low-pressure steam, gas or liquid. The floating ball design with metal/graphite laminated seats lower torque and actuator requirements.
Most popular related searches
full bore ball valve
isolation valve
flange adaptor
ball valve
drain valve
drain tube
drain pressure
drain vent
pressure cleaning
Additional Features
- Lock-out integrated into mounting flange adaptor for open and closed positions
- Standard with hand lever and actuator mounting bracket to accommodate all types of actuators and accessories
- Size: 1 to 3 inch (25 to 80 dn)
- Temperature: 900° F (482° C). [A105 limited to 800° F (426° C)]
- Socketweld (1 to 2 inch) and
- Buttweld (3 inch Schedule 80)
Power Generation
- Extraction steam drains
- Low pressure HRSG tube drains
- Isolation valve for bypass lines cold reheat drains
- Drip leg drains
