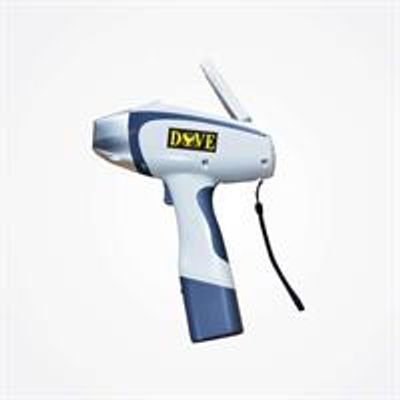

Genius Mineral Analyzer (XRF)

Genius XRF Handheld Mineral Analyzer is our top of the line mineral analyzer and spectrometer for field use. Analyzes elements Mg to U down to 1 ppm with 0.05% accuracy. The DXRF-8000 X-ray Fluorescence Mineral Analyzer besides being a spectrometer, it is also small, light and operable with one hand. XRF analyzers are extensively accepted now for accurate, rapid and non-destructive mineral analysis. The Genius XRF works on wavelength dispersive spectroscopic principles that are similar to electron microprobes used in RoHS analyzers and Alloy Analyzers. XRF Mineral Analyzers are now being widely used in the elemental analysis of minerals, slag refinement and archeology. Samples that can be tested include ores, slag, rocks, soil and slurry in solid, liquid or powder form.

• Mineral exploration and geological surveys.
• Inspection of rocks, oil, sediments and ore.
• Drawing of atlas for mineral resources.
• Analysis of crude ore, ore concentrates and tails in washing process.
• On-site analysis in hydrologic survey and archeology.
• Determination of grade of ore during the purchase of crude ore and ore concentrates.

• Same performance and reliability as the bench-top spectrometers due to the combined use of low power integrated mini X-ray tube, large area Be – window electric cooling and Si – Pin detector with low power consumption and high excitation efficiency.
• Small, light and convenient for work in the field allowing anytime and anywhere on site analysis or inspection.
• High resolution PDA coupled with mini multi-channel analyzer and Bluetooth keeps the measurement data easily available under any circumstances.
• Adapt to rapid analysis in handheld mode or long time precision test in bench mode.
• Waterproof, dustproof and operable in high temperature and high humidity environments.
• Protective case meets military specs for moisture, shock and pressure.
• Professional software designed for testing of mineral elements characterized by high sensitivity, short measurement time and simple operation.
• Rapid identification of mineral categories.
• Automatic qualitative and quantitative analysis of multi elements.
• Different test options with unlimited adding of test modes.
• In-built intensity correction mode correcting deviation caused by different geometric shapes or uneven structural density.
• Single battery operating time of 4 hours but you can use up to two batteries to assure longer periods of use. Solar power or car chargers can also be used.

• Model: XRF- Genius Mineral Analyzer
• High resolution PDA: Windows CE operating system, coupled with mini multi-channel analyzer in Bluetooth communication and email transmission function.
• Excitation source: 40KV/100uA miniature, Ag target and end-window integrated X-ray tube.
• Detector: 25mm2, 0.3mil, SDD, good energy resolution down to 139Ev.
• Testing time: 3-60s (handheld or sitting).
• Form of samples: solid, liquid and powder
• Ability of simultaneous analysis: up to 24 elements
• Detection limit: down to ppm level (24.41in x 19.29 in x 23.22 in)
• Safety: With auto-sensing feature, the instrument will work if there is no sample in place.
• Data transmission: Digital multi-channel technology, SPI data transmission, quick analysis, high count rate.
• Charger: DC charger: car charger
• AC Charger: 110V/220V, 50/60Hz
• Weight: 1.9kg (4.18lbs) with PDA and battery, 1.6kg without battery
• Ambient temperature: 20°C to 50°C (68°F – 122°F)
• Ambient humidity: up to 90%
• Product dimension: 234mm (L) x 82mm (W) x 306mm (H)
• (2.5cm x 26cm x 2.5cm)
• Analytic method: X-ray spectrometry
• Method of measurement: Energy dispersive X-ray
• Element range: Mg (Magnesium) to U (Uranium)
• Concetration content: 0.05% – 0.1%
• Accessories and Parts: Waterproof kit case, handheld battery & charger, handheld adapter, mini USB, sample cups, high capacity SD memory and SD card reader.
