MAE - Model C313SEV -Georesistivimeter for Quadrupole Measurements

SHARE

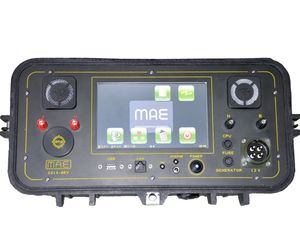

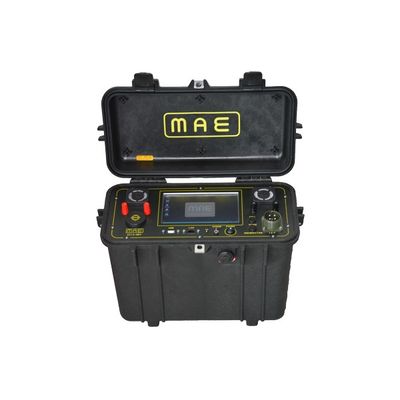

Digital Georesistivimeter for V.E.S. Vertical Electric Surveys. Equipment is characterized by maximum resolution and accuracy in geoelectric survey and great functioning rapidity. Once data acquisition is completed, data can be immediately processed with related data processing software. Power is supplied by embedded battery pack and it is managed through a microprocessor able to provide wide autonomy of acquisition. Recording and saving of data takes place on internal Disk or on USB key (supplied). Unit is fully computerized and all operating functions are selected simply by touching menu on color LCD monitor 7" with integrated touch screen.

Most popular related searches

process data software

geoelectric monitoring

induced polarization

wave monitoring

automatic monitoring

screening system

electrical characterization

General:

Number of electrodes: 4
Power supply: Internal 12V battery pack, external battery
Average power consumption: 2,5A, 50A peak
Average autonomy: 9 hours
Environmental operating conditions: -20/80 °C
Resolution: 24 bit
Case: Polypropilene, automatic pressure valve, IP67
Display: LCD 7" integrated touch-screen
Operative system: Windows 10
Ports: LAN, USB
Data recording: internal ssd, USB esternal pen drive
Data format: TSV, CSV, DAT
Dimensions: 49 x 19 x 26.4 cm
Weight: 9,6 Kg

Output current:

Regulation: Automatic 5 steps
Maximum intensity: 5A a 50V
Output tension: ±50V, ±100V, ±250V, ±500V, ±800V
Maximum power: 250W
Injection time: settable from 0,25 sec. (graphic visualization of the wave)
Measure accuray: ±0,2μA

Potential measurement:

Range: Auto range
Measure: simultaneous measure on all channels
Maximum full scale: ±25V
Input impedance: 2,5 MOHM
Network frequency filter: 50 Hz
Protection: superior
Measure’s precision: ±1,5μV within the range of ±25V
Noise reduction: average from 2 to 10 measures
Automatic reset of spontaneous potential: Automatic
Accuracy of measured resistivity: ±0,5%

V.E.S. Vertical Electrical Survey
Spontaneous Potential Measurement
Induced Polarization measurement
