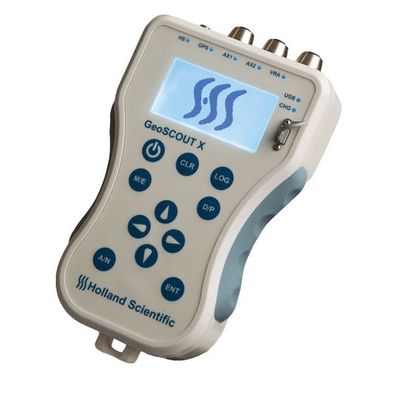

GeoSCOUT - Model X -Data Logger
The GeoSCOUT X data logger is an easy-to-use and reliable tool for collecting geospatial data from Holland Scientific sensors and other sensors that provide RS-232 text-based data streams. Geospatial sensor data are stored on an internal SD flash card. All data is stored in files that are organized with a comma-separated-variable text format for easy import into third-party GIS mapping and analysis software. The GeoSCOUT X can support 4 Crop Circle sensors plus two additional RS-232 serial devices. Position offsets for each sensor can be readily configured.
Most popular related searches
data logger
geospatial data
dust cover
GIS mapping
sensor data
power data logger
GIS mapping software
geospatial
molding material
mapping software
- Internal Memory: SD FLASH (class 4 or higher recommended)
- Memory Capacity: 2 to 32 GB
- File System: FAT-16 or FAT-32 DOS compatible
- Data Transfer: Mini B USB connector, 1.5 Mb/sec transfer rate
- Keyboard: 11-key metal dome, tactile
- Display: 128 by 64 pixel backlit liquid crystal display
- Internal GPS Accuracy:
- External GPS Serial Port: 4800, 9600, 19200 or 38400 baud, Odd/Even/No parity, 8 or 9 data bits and 1 or 2 stop bits
- Control Serial Port: 4800, 9600, 19200 or 38400 baud, Odd/Even/No parity, 8 or 9 data bits and 1 or 2 stop bits
- HS Sensor Serial Port: Communication parameters are selected automatically
- AUX1/AUX2 Serial Ports: 4800, 9600, 19200 or 38400 baud, Odd/Even/No parity, 8 or 9 data bits and 1 or 2 stop bits
Electrical/ Mechanical
- Internal Power Source: Lithium ion battery (powers the data logger, not external sensor(s))
- Sensor Voltage Output: Short circuit protected, over current limited to 4 Amperes
- Input Voltage Range: 10-16VDC, load dump and reverse bias protected
- Dimensions: 8.25 in. (21.0 cm) X 5.1 in. (13.0 cm) by 2.0 in. (5.1 cm)
- Enclosure: Injection molded, ABS material
- Environmental: IP64 for splash and dust resistance.
Optional Accessories
- Dual GPS/CTRL serial adapter cable
- Dual AUX1/AUX2 serial adapter cable
- Two meter power cable
- USB serial cable, mini type B to type A
- Serial port dust cover caps
