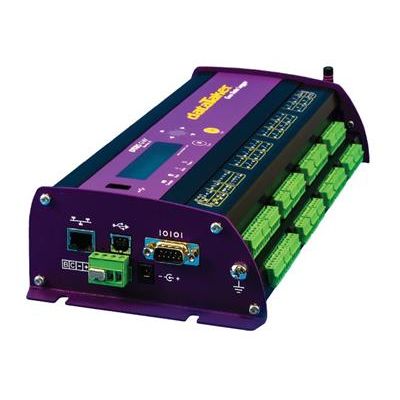

dataTaker - Model DT85GW -Geotechnical Data Loggers
Advanced design and technology plus 25 years of geotechnical expertise have produced the dataTaker DT85GW GeoLogger – A versatile, powerful – yet low power & cost effective data logger. It support vibrating wire and other geotechnical sensors such as Slope Indicator, RST Instruments, Geokon, Soil Instruments, Roctest, AGI – Applied Geomechanics Inc. DT85GW is also capable to test sensor integrity through audible frequency with temperature compensation (thermistor), 16 analog channels are capable to read up to 16 vibrating wire sensors. If temperature compensation is not required this logger can read up to 48 vibrating wire sensors. Further expansion up to 320 sensors (with temperature compensation) or 960 sensors(without temperature compensation) is possible.
- Vibrating Wire Support
- Carlson, Electro Level & LVDT support
- Strain Gauge Support
- Dual Channel Isolation Technology
- Up to 48 Analog (± 50V) sensor inputs
- Expandable to 960 analog inputs
- Programmable Analog Output
- Integrated WiFi
- Automatic data transfer via email or FTP
- Modbus for SCADA connection
- Web & FTP client / server
- USB memory for easy data and program transfer
With wireless access, no need to have physical connection to the logger. Send the program, view and download the data or even modify your setting on nearby PC or Tablet wirelessly either as a Master (Access Point mode) or Slave (Client).
On Client mode dataTaker can have access to local router and if the router has internet access it can utilise the DT85GW’s automatic data delivery features to schedule your data to be automatically emailed to your inbox every day, week, month or other time interval.
More sophisticated systems can make use of the automatic data delivery features to send logged data to an FTP server.
With the standard unit able to store up to 10 million data points (expandable) you can log as much or as little as you need. Overwrite or stop logging once allocated memory is full, archive data on alarm event, copy to USB memory or transfer via FTP/ Email, the choice is yours.
Communications features include RS232, USB and Ethernet, connect to the DT85GW locally, remotely through a modem or over the Internet. The web interface allows users to configure the DT85GW, access logged data and see current measurements as mimics or in a list using a web browser.
FTP/ Email provides data to your office over the internet or wireless network, without the need for polling or specific host software.
- Land Slide Prevention
- Dam Wall Monitoring
- Mining Exploration
- Tunnel Excavation
- Concrete Curing
- GPS
- Max Sampling rate (Hz) 40
- Analog Inputs
- 48 (2-wire common reference)
- 32 (2-wire isolated)
- 16 (3 and 4-wire isolated)
- Analog Input Range
- Voltage: ±30m,300m,3000m,50000mVDC
- Current: ±30mA
- Resistance: 1MΩ
- Frequency: 450kHz
- Analog Voltage Accuracy ±0.15 of Reading + (Full Scale Reading * 0.01%)
- Effective Resolution 18 bits
- Analog Outputs 1
- Analog Out Range
- Voltage: 10m-10000mVDC
- Current: 0-24mA
- Excitation
- Analog Channel: selectable 2µA, 250µA or 2.5mA precision current source, 4.5V voltage source or switched external supply
- Switchable 12V/5 regulated power output (max 300mA)
- Digital IO 8 bi-directional channels
- Counter
- Low speed counters: 8 counters shared with digital inputs
- Dedicated counters: 4 high speed or 2 phase encoder
- RS232/RS422/RS485 serial sensor port 1
- RS232 host port 1
- USB Port 1
- Ethernet Port 1
- Data Storage 128MB (upgradeable to 2GB)
- Vibrating Wire supported Yes
- Protocols Supported Modbus, FTP, HTTP, XML, SMTP, NTP and SDI-12
- CEM20 Expansion Module supported Yes
- Power Requirements 10-30 VDC
- Internal Battery 6Vdc 1.2Ah Lead Acid
- Real Time Clock Accuracy
- ± 1 min/year (0°C to 40°C)
- ± 4 min/year (–40°C to 70°C)
- Integrated WIFI
- Mode: Client or Access Point
- Security: OPEN, PSK_WEP, PSK_WPA, PSK_WPA2
- Dimensions(mm) 180x137x65
- Weight 1.5kg
- Temperature Range –45°C to 70°C
- Warranty 3 years
