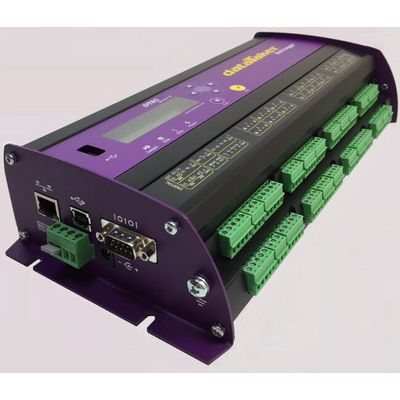

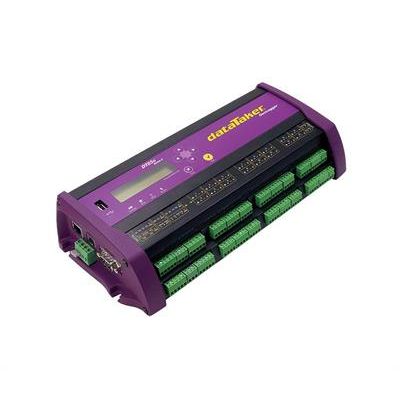

dataTaker - Model DT85G -Geotechnical Data Loggers

• Battery Type : None, external power required
• Calibration : Not Calibrated
• Channels : 16 to 48 Analog and 12 Digital (expandable using a CEM20 modules), high speed counter inputs and phase encoder inputs
• Data Memory : 128 MB
• Dimensions (L x W x H) : 300 x 137 x 65 mm
• Humidity Range : Maximum: 85%, non-condensing
• IP Rating : IP54
• Includes : Logger and accessories
• Interface : Includes SDI-12, Ethernet, MODBUS, RS232, RS422, RS485, USB
• Model : DT85G
• Sensor Types : Numerous, including vibrating wire sensors, thermocouples, thermistors, temperature sensors, strain gauges and bridge sensors
• Weight (Metric) : 2.5 kg
• Alarm Types : E-mail, SMS, Physical/Digital Output
• Display Type : Backlit LCD, 2 line by 16 characters
• Type : Advanced Geotechnical Logger
• Unit Size : Each

The DataTaker DT85 series comprises a family of advanced data loggers, ranging from five channel data loggers to systems with hundreds of analog inputs and many digital inputs.

The DataTaker DT85 series measures and logs analog & digital data from numerous electrical sensors or analog instruments, RTDs, thermocouples, temperature sensors, strain gauges, current loops, voltages, resistance and frequencies.

DataTaker DT85 models include an Ethernet port, USB port and a built-in web server, dEX for setup and for viewing/downloading of data. In addition:

• DT85M includes an integrated modem
• DT85W and DT85GW include integrated WiFi

DataTaker DT85G and DT85GW are specifically suited to geotechnical applications such as slope stability, subsidence, dam wall monitoring, tunnel and mining excavation, ground water, tunnel wall monitoring and site assessment. These support vibrating wire sensors and other geotechnical sensors.

Other Features:

• Analog input channels set up as binary logic level inputs.
• Digital inputs recording ON/OFF states of contacts, or counting pulses over a desired period.
• Alarm channels and digital outputs to raise alarms (email / SMS / physical digital outputs) or control external processes.
• Readings may be returned directly or via internal calculations based on a single channel or multiple channels.
• Internal memory holds ∼10 million readings.
• Connection to the host computer via Ethernet, USB, and serial Host Port.
• Separate USB port for USB flash drives to be used for extra storage, or automatic unloading of data from the logger.
• Built-in battery or auxiliary battery option.
• Most data logging configurations are easily set up using the graphical web-based dEX interface and a standard web browser.
• For more complex configurations, a script can be developed using the logger`s own scripting language.
