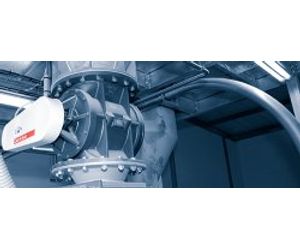

Gericke - Rotary Valves
Using rotary valves that are adapted to the specific requirements of a powder handling application, increases the process efficiency. Rota Val, a member of the Gericke Group, offers an extensive product range including standard rotary valves as well as hygienic valves, suitable for food and pharmaceutical industries. Rota Val manufactures also valves for bulk road tanker discharging and valves with very large entry section 600 x 800 mm. Rota Val valves are pressure resistant up to 10 bar and act as flame barrier.
A rotary valve is a compact device that controls the continuous discharge of particulate solids under gravity. It may also function to
- Dose the flow of product to the required value
- Maintain a gas pressure differential
- Act as an explosion barrier
- Act as a flame barrier
- Act as a process isolator/barrier
A rotary valve is a volumetric discharging device that isolates zones with different pressure. It has many areas of use in conveying systems, a few examples are:
Pneumatic conveying systems
- To dose product from a silo into a conveying line
- Act as an airlock between a screw conveyor and conveying line
- Act as an airlock between a Gericke mixer and conveying line
- Act as an airlock between a sifter and conveying line
- Filling of process machines
- Discharge a smooth flow of product from a hopper in to a mill
Discharge
- Controlled discharge orf hoppers
- Continuous discharge of vacuum receiving hoppers
Industries that we sell our rotary valves into
- Food
- Pharmaceuticals
- Chemicals
- Waste
- Sewage
- Biomass
- Animal feed
- Agricultural
- Mining & Quarries
- Plastics
- Silo road tanker
Hygienic Series FCT, BSFCT
- Rapid strip down and re-assembly for minimal down time
- Tapered bore for scratch free rotor extraction and insertion
- Both end covers can be removed for easy access to valve internals
- Horizontal slide rails allow for the rotor to be extracted and cleaned whilst still in place attached to the end cover
- BSFCT fabricated conveying pipe for smooth finish and flexibility on pipe size
Heavy Duty Series HD, BS, XGD
- Special large sizes available up to 600x1200 mm
- Special bespoke versions designed to suit challenging customer requirements
Extra Heavy Duty Series EHD, EBS
- High wear erosion resistant contact parts
- Spare internal wear parts are easy to fit “on site” reducing the need to send the valve back to Rota Val for refurbishment
- Greatly reduced down time for maintenance
- Interchangeable with HD valve
