Gero - Model DL02-GSM -Data Logger
The DL-02 data logger is a very compact device, wich can operate in small 2` level observation holes because of it`s integrated suspension device. The optional GSM modem is integrated in the data logger and powered by it. Depending on the installation situation, different antennas can be used.
Most popular related searches

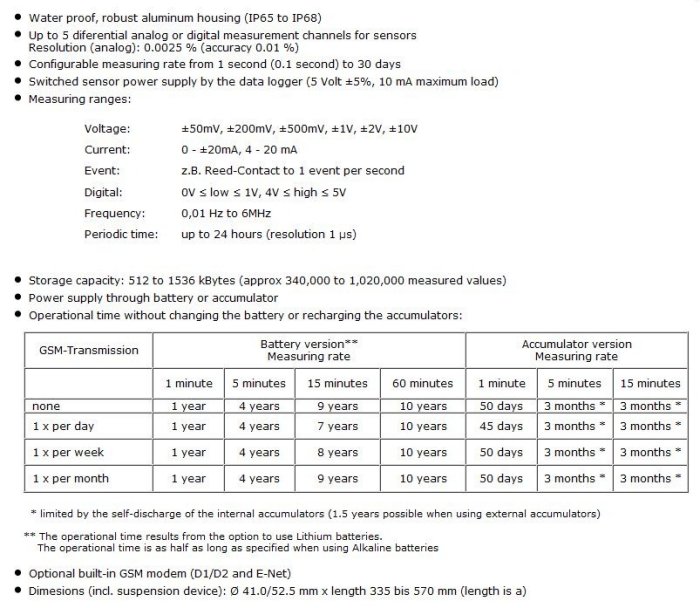

- Maximum possible measurement channels / inputs:
- 5 analog measurement channels with 14 Bit resolution
- 3 digital counting inputs
- 3 alarms
- Sensors (e.g.):
- Pressure, level, temperature
- pH-Value, conductivity, chemical quantities
- Precipitation, flow and condition
- Storage capacity for up to 1,020,000 measured values
- Serial interface for PC (IrDa optional)
- Power supply through:
- Battery (Alkaline or Lithium)
- Accumulator
- Extern with 12 VDC, 24 VDC
- Up to 10 years battery life (daily data transmission via GSM)
- Protection class to IP68
- Built-in GSM modem for transmitting measured values and alarms to:
- a control center
- Fax machines
- GSM mobile phones or landline phones
- GSM antennas:
- Bar antennas (direct or wired)
- Directional antenna
- Well-cap-antenna
- 7-segment LED display
- Installation stuff for 3" pipes or more
