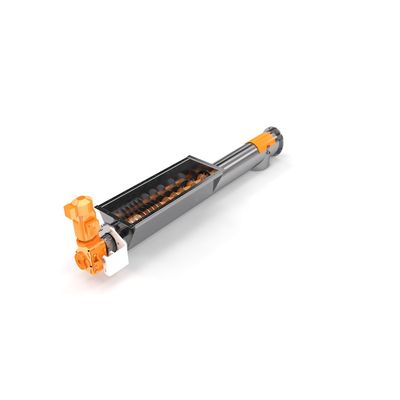

Geroldinger - Screw Conveyer
FromGeroldinger GmbH
Applications: All bulk goods except for pasty bulk goods (e.g. filter cake). Advantages: Closed system, Can also be reversed (transport to the left or right).
Most popular related searches
screw conveyor
trough screw conveyor
dust explosibility
dust explosion
tubular trough screw conveyor
filter cake
tubular screw conveyor
trough conveyor
Technical Details:
- Diameter: 100 800 mm
- Length: 1,0 16,0 m
- Conveying capacity: 1 400 m³/h
- Inclinations: 0 60°
Other Configurations:
- Suitable for indoor dust explosion zone 20 and outdoor dust explosion zone 22
- Design as tubular or trough screw conveyor
Materials:
- Normal steel S235 painted(< 480 µm)
- Stainless steel 1.4301
- Stainless steel 1.4571
