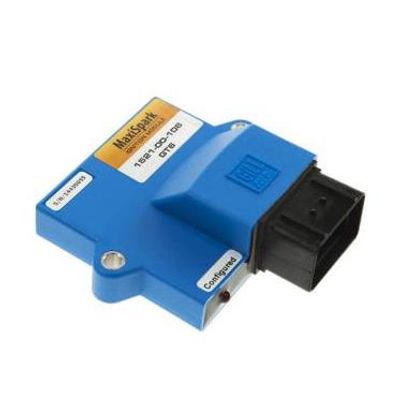

Gill - Model GS6 -Ignition Module
This economical ignition module is designed for engines from 1 to 6 cylinders - up to 800 in3 (13 L) total displacement which will benefit from the latest in inductive ignition technology. Inductive technology allows for adjustable continuous spark duration - up to 1,500 microseconds on rich-burn, lean-burn, naturally aspirated or turbocharged versions. Fuel types such as natural gas, propane, LPG, landfill, digester and other biogas fuels are also compatible.
Programme adjustments to optimise engine performance are easy with the Windows® based software.
The GS 6 is available in different options allowing for inductive and/or Hall Effect pickup sensors for timing input, which can be the Gill timing disc and standard pickup, existing OEM cam disc, A5 conversion kit or a drilled flywheel pattern for wasted spark firing.
Please note: The GS6 replaces GT6 ignition module.
Please scroll down for all our other compatible products.
- Number of cylinders: 1-6
- Power: 12 / 24 VDC. 5 Amp
- Spark Energy / Duration: 500 to 1,500 µSeconds
- Timing: Global, Dual Fuel
- Timing Maps: 2D - speed and timing, 2 maps
- Trigger Methods: Inductive/ Hall Effect Pickup
- Visual Features: On-board LED status light
- Application: Engines less than 800 inches cubed (13 L)
- Software: Windows® based Gillfire
- Environmental: Sealed to IP 67 Standards
Number of cylinders:
1-6
Power:
12 / 24 VDC. 5 Amp
Spark Energy / Duration:
500 to 1,500 µSeconds
Timing:
Global, Dual Fuel
Timing Maps:
2D - speed and timing, 2 maps
Trigger Methods:
Single Inductive Pickup
Visual Features:
On-board LED status light
Application:
Engines less than 800 inches cubed (13 L)
Software:
Windows® based Gillfire
Environmental:
Sealed to IP 67 Standards
