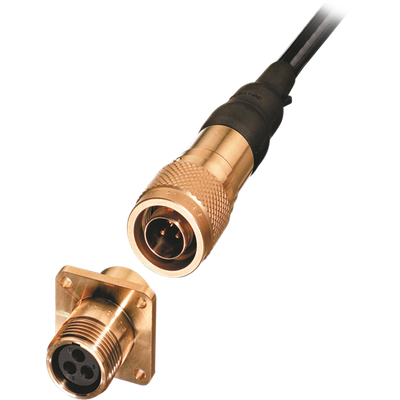

GISMA - Model 24 Series -Waterproof Installation Connectors
The Baureihe 24 series waterproof installation connectors are designed to meet protection classes IP 66 to IP 68, ensuring robust and reliable connectivity across various industrial applications including construction machinery, marine engineering, shipbuilding, and industrial uses. Crafted from seawater-resistant bronze, these connectors offer small dimensions coupled with modular construction, making them ideal for harsh environments. Their design incorporates O-ring seals exclusively at sealing levels to ensure watertight integrity. The connectors are housed in metal casings made of corrosion and seawater-resistant bronze, which further makes them suitable for challenging conditions. Crimp contacts facilitate quick and secure assembly, enhancing operational efficiency. These connectors are a vital component for applications demanding durable and resilient connectivity solutions under arduous conditions.
The waterproof installation connectors of the 24 series, when used with appropriate end housings, meet protection classes IP 66 to IP 68. Designed in a modular style, these connectors, made of seawater-resistant bronze, offer robust connection technology in a compact form factor for a wide range of applications.
The sealing surfaces exclusively use O-ring seals. With their metal housings made of seawater- and corrosion-resistant bronze, the series is also ideally suited for harsh environments. Crimp contacts enable quick and reliable assembly.
- Industrial applications
- Marine technology
- shipbuilding
- Construction machinery
- Housing material: seawater-resistant bronze
- modular construction
- inverse insulating body assemblies
- Waterproof from IP 66 to IP 68
- O-rings as interface seals
- secure metric locking threads
- Elastomeric insulating body with conical creepage extension
- Polarity diagrams for 3 to 61 contacts
- Operating voltages up to 250 V
- Operating current up to max. 40 A
- dry pluggable
