Gizmo Engineering - Float Switch Level Probe

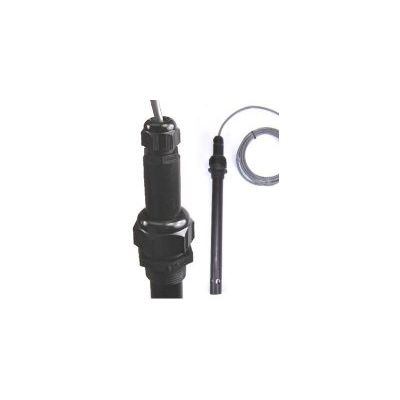

The LEVEL PROBE is a float switch mounted in the bottom of a polypropylene pipe. The float switch is protected inside the pipe. Pipe depth can be adjusted without tools by loosening the cord grip.
- Robust Float switch is protected from abuse inside the pipe.
- Chemically resistant. All polypropylene wetted parts atand up to 98% sulrufic acid and more.
- Rugged. Built for rough, wet and corrosive environments.
- Easy Depth Adjustment. Cord grip loosens by hand.
THE LEVEL PROBE is perfect for mounting in places where there is very low headroom. Just screw the 1 inch NPT cord grip into whatever mounting means is available. If no mounts are available there are several optional mounts to choose from that accept the 1" cord grip.
Depth adjustment is easy and can be done by hand by loosening the cord grip. When tightened, the cord grip provides a waterproof seal.
Includes 10 ft of heavy walled mulitconductor cable to connect to your process. Optional circular cable connectors make repeated disconnections easy.

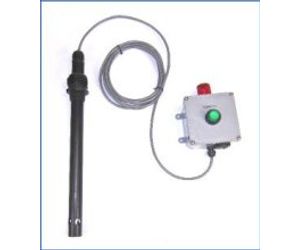

Some Chemicals Commonly Used With Gizmo Engineering Tank Alarms:
- Aqueous Ammonia (conc.)
- Aqueous solutions to 100°C
- Chromic acid (50%, Rm. Temp)
- Glycolic acid
- Hydrochloric acid (conc.)
- Nitric acid (30%)
- Oils (including waste oils)
- Potassium carbonate (40%)
- Polyester resin (viscous)
- Sodium hydroxide (50%)
- Sulfuric acid
- Sodium Hypochlorite
