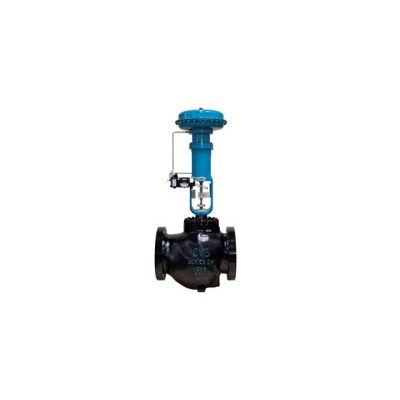

CVS - Model EW Series -Globe Style Control Valves
The CVS Series EW valve bodies are single port, globe-style bodies with cage guiding, clamped seat rings and push-down-to-close valve plug action. Providing excellent pressure and flow control on steam, gasses, and various liquid processes. This series features large end connections and expanded internal flow cavities.
Most popular related searches
globe style control valve
control valve
balancing valve
plug valve
flow control
pressure flow controller
globe valve
- Design EWD is intended for general control applications over a wide variety of temperatures and pressure drops. This design has balanced valve plug with metal-to-metal seating.
- Design EWS is intended for applications requiring better shutoff capabilities than those suitable for the EWD. This valve uses an unbalanced valve plug with metal-to-metal seating, or optional metal-to-TFE seating.
- Design EWT is suitable for applications with stringent shutoff requirements. This valve uses a balanced valve plug with metal-to-TFE seating, or metal-to-metal seating for use in higher temperatures.
Available in LCC, WCB, WCC, WC9, C5, Monel, and CF8M SST body materials. Other materials available upon request.
- Sizes: 8X6, 10x8, 12X6, 12x8, 16x12, 20x16, 24x16, 24x20. The first number refers to the line size, and the second refers to the trim and bonnet size
- Shutoff Classification: Standard Materials: EWD - Class IV, EWS Class V, EWT Class V
- End connections: ASME Class 150 through 900 RF, RTJ, and Welded End Connections
- Flow Characteristics: Linear, Quick Opening, and Equal Percent
