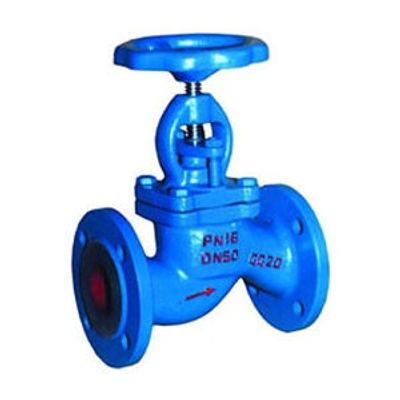

Cast Iron Armature - Model 103 and 106 Series -Globe Valve

The valves are ? pipeline fixture for letting out, stopping, and fluid stream regulation, which shutting device moves perpendicular towards the sealing rings (the saddle). They are implemented as shut-off devices, mounted on pipelines, through which are transported steam, water, air and other non-aggressive liquids, at a pressure not exceeding PN16 and Tmax 200 °?. The globe valves provide possibility for changing of the gland packing under pressure. In the case of full-open valve the stem provides sealing with the bonnet.
