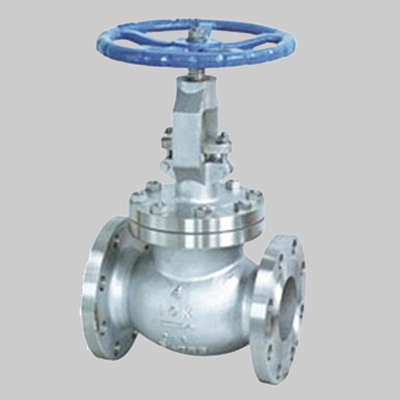

Famat - Globe Valves
FromFamat S.A.
Globe valves are used for shut-off or regulating of a flow in a pipeline, and exist in different style: Straight pattern: Most common type. Y-Type: For maximum flow with low pressure-drop. Our range covers both style, but we will mention here the most common types straight patterns.
Most popular related searches
forged steel globe valve
globe valve
position indicator
pressure seal
pneumatic actuator
forged valve
electric actuator
- Forged steel Globe valves, ANSI 800, 1500, sizes ½” to 2”
- Bolted Bonnet, connection NPT, SW, or Flanged, in materials A105, LF2, 304L, 316L, F11, F22, F91.
- Forged steel Globe valves, ANSI 1500, 2500, 4500, sizes ½” to 12”
- Bonnetless, connections NPT, SW or BW, in material A105, LF2, 304L, 316L, F11, F22, F91.
- Cast steel Globe valves ANSI 150, 300, 600, 1500, 2500, sizes 2” to 24”
- Bolted Bonnet connection BW or Flanged, in materials A216WCB, WC6, WC9, CI2A, CF8M.
- Cast steel valves ANSI 600, 900, 1500, 2500, sizes 2” to 16”
- Pressure Seal, connection BW or Flanged, in materials A216WCB, WC6, WC9, CI2A, CF8M.
All accessories and equipment available:
- Electric or pneumatic actuators
- Limit switches
- Locking devices
- Position indicators
- Regulating plugs
- and more…
