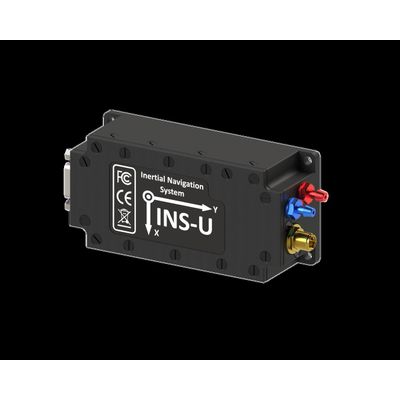

Inertial-Labs - Model INS-U -GPS-Aided Inertial Navigation System
The Inertial Labs GPS-Aided Inertial Navigation System (INS-U) is an IP67 rated version of the new generation, fully-integrated, combined Inertial Navigation System (INS) + Attitude & Heading Reference System (AHRS) + Air Data Computer (ADC) high-performance strapdown system, that determines position, velocity and absolute orientation (Heading, Pitch and Roll) for any device on which it is mounted. Horizontal and Vertical Position, Velocity and Orientation are determined with high accuracy for both motionless and dynamic applications.
- INS, AHRS and ADC (Air Data Computer) output data
- Multi frequency and Multi constellations GNSS Receiver
- GPS, GLONASS, GALILEO, QZSS and BEIDOU GNSS
- Designed for fixed-wing and multi-rotor Aerial Platforms
- Two Barometers for Indicated Airspeed
- Position accuracy = 1 cm (RTK)
- Heading accuracy = 0.3 deg (RTK, Dynamic)
- Pitch & Roll accuracy = 0.08 deg (RTK, Dynamic)
- Gyro-compensated, embedded Fluxgate magnetic compass
- Optional external Stand-Alone Magnetic Compass
- Small Size, light weight, low power
- Affordable price
The Inertial Labs INS-U utilizes advanced single antenna multi constellation (GPS, GLONASS, GALILEO, QZSS and BEIDOU GNSS) receiver; two Honeywell TruStability® Board Mount Pressure Sensors; a miniature gyro-compensated Fluxgate compass; 3-axes each of calibrated in full operational temperature range Advanced MEMS Accelerometers and Gyroscopes to provide accurate Position, Velocity, Heading, Pitch and Roll of the device under measure.
INS-U contains Inertial Labs new on-board sensor fusion filter, state of the art navigation and guidance algorithms and calibration software.
- Commercially exportable GPS-Aided Inertial Navigation System
- 3-in-l strapdown system: INS + AHRS + ADC (Air Data Computer)
- Embedded in-flight calibration
- Designed for UAV application algorithm
- UBIox ZED-F9P F9 High Precision GNSS Module
- Small size, lightweight & low power: 82 x 40.0 x 26.0 mm, <200-grams, <1 watt
- GPS, GLONASS, GALILEO, BEIDOU, QZSS, RTK supported signals
- Total and Static Pressure Sensors for calculating Indicated Airspeed
- Embedded Gyro-compensated Mini-Fluxgate magnetometers (compass)
- GNSS measurements and IMU raw data for post processing
- Advanced, extendable, embedded Kalman Filter based sensor fusion algorithms
- State-of-the-art algorithms for different dynamic motions of Helicopters, and UAV
- Full temperature calibration of all sensing elements
- Environmentally sealed (IP67)
- Aiding data: Wind sensor, Air Speed Sensor, Doppler shift from locator (for long-term GPS denied), External position and External Heading
