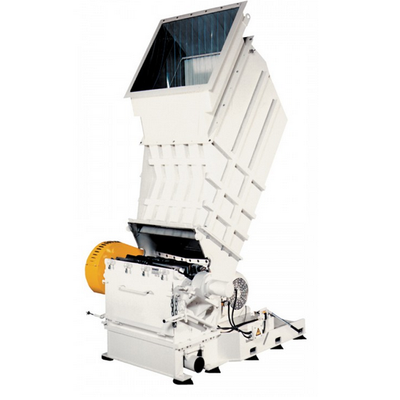

Neue Herbold - Model LM Series -Granulator
Equipped with “double cross cutting geometry”, the cutting mill LM produces a cleaner and more uniform granulate. In the mill housing, the rotor blades, and the slanted opposite stator knives are angeled to each other. The operation of this double cross-section ensures precise cutting gap along the full working width. In addition to lower noise, the thermal load of the supplied material is reduced hereby. Furthermore, the granulators of this series LM are extremely resilient. Housing parts, rotor shaft, blade supports and bearings are constructed with high redundancy.
The externally mounted rotor shaft is separated from the grinding chamber and housed in pedestal bearings outside. Hereby an effective foreclosure is ensured. The dust particles can not pass from the grinding chamber into the bearing. This increases the mileage of the rotor bearing and thus reduces their early wear. Also additional heating of the interior grinding chamber by the heat the bearings is thus prevented.
Areas of NEUE HERBOLD granulators
The NEUE HERBOLD granulator LM line is especially suitable for shredding bulky plastic waste with thin to medium wall thickness. They are robust and low-noise machines, designed for medium loads.
- Flexibility in their application range
- Heavy duty design
- Reduced space requirement due to compact design
- Energy-saving size reduction
- Extremely high through put rates
- Easy cleaning due to clam shell opening characteristics
- Reduced down time for hammer replacement
Typical application of this granulator series is:
- size reduction of loose film ( in-line edge trims)
- size reduction of hollow containers
- size reduction of barrels
- size reduction of crates
- size reduction of PVC pipes
- size reduction of thin-walled PE/PP pipes
- size reduction of profiles (windowprofiles,…)
- size reduction of automotive bumpers
- size reduction of web scrap
- size reduction of injection moulding waste
- size reduction of thermoforming scrap etc.
