Green Park - Grid for Driveway Surface with Grass Finishing

SHARE

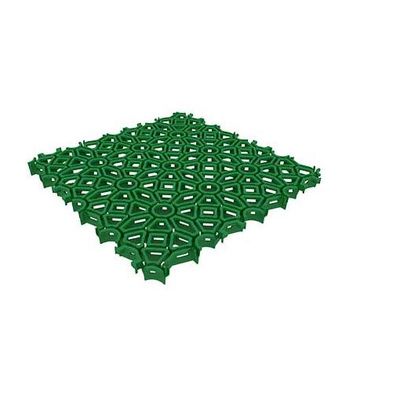

Green Park is a modular product made of environmentally friendly, recyclable thermoplastic resin. It makes grassy areas suitable for vehicular traffic by protecting the surface from damage caused by the transit and parking of wheeled vehicles, including heavy equipment. It is distinguished by its ornamental effect, easy to install, maintenance-free, and withstands the stresses of use under extreme environmental conditions over time.



Most popular related searches
well level
thermoplastics recycling
water grid
load cell
waste production
water distribution
materials recycling

The different contouring on the two opposite sides make Green Park extremely versatile, in that it can be installed with either side facing upwards; when it is installed with the thinnest ribs facing upwards, this creates drive-over areas and paving with grassy or gravel finishes, and installation with the thinnest ribs facing downwards creates temporary green areas for pedestrian use.

It is available in green and white to harmonise with any finish, even with gravel while preventing its dispersion, among other things.

  • Ecological due to the use of recyclable, environmentally friendly, reusable materials.
  • Light and easy to pose.
  • It respects the soil’s vital structure and protects the lawn in a non-invasive way.
  • Due to its unique coupling system, the grid can be mounted either horizontally or vertically, at right angles or staggered, and even overlapping or with alternating sides in the same substrate.
  • If used temporarily on an existing lawn, it can be removed and repositioned at any time, so that it can be used several times over the course of its service life.
  • Individual cut pieces can be coupled with intact pieces, virtually eliminating product waste or scraps.

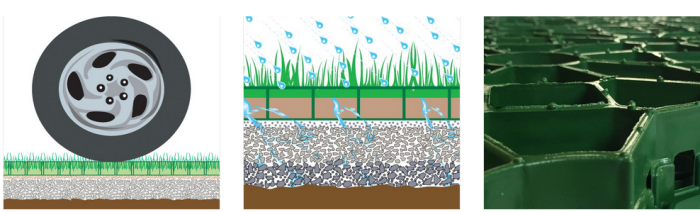

  • The interior of Green Park offers a water grid (tubing) with the capacity to accumulate a water reserve of 1.5 l/m2.
  • This guarantees the gradual distribution of water, prevents stagnation and favours the uniform growth of the lawn.
  • With Green Park, the draining properties of the soil remain unaltered (by more than 90%), keeping the surface passable during all seasons and under any weather conditions, thereby avoiding the formation of mud and always keeping the surface dry.
  • During the summer it does not produce unwanted thermal effects due to overheating of the sealing surfaces such as those in the asphalt.

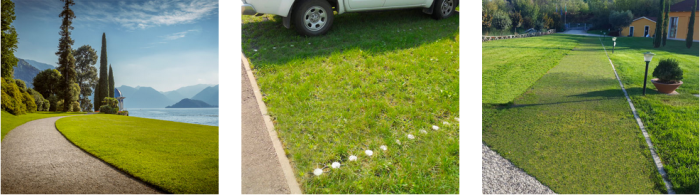

  • It gives the turf a spectacular ornamental effect.
  • Both sides of the grating have non-slip surfaces which makes it suitable for installation in walkways.

  • Access areas for cars and motor vehicles.
  • Public and private parking areas.
  • Bicycle tracks and pedestrian walkways.
  • Paths in golf courses and sport plants.
  • Equipped areas (gazebo and barbecue areas, etc.).
  • Consolidation of slopes to contrast wash away and erosion phenomenons.
  • Temporary surfaces, on chance pieces of land for various events: fairs, markets, tent theatres, etc.
  • Surrounding surfaces for tree trunks.
  • Protection of lawn surface against damage caused by hostile acts of animals (dogs, etc.).

With Green Park it is possible to respect urban constraints and render the areas, which have to be green areas by precept, functional.

In case of slopes it is important to consider the adherence coefficient. For this reason, assuming prudentially a wet surface and tires and medium/high use status, it is not recommended to use Green Park for inclinations greater than 8%. Adherence can be improved by inserting joists in stone material. The use of locking rings is mandatory for laying on inclined surfaces.

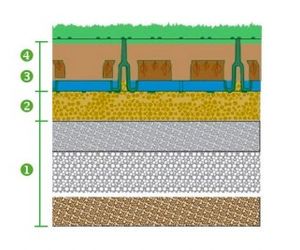

  1. PREPARE ROAD SUBSTRATE with stabilised, well levelled, rolled and compacted crushed stone of a thickness suitable for vehicular transit.
  2. LAY A WELL-LEVELLED LAYER OF FINE SAND approximately 3 cm thick.
  3. DEVELOP THE ROAD SURFACE USING GREEN PARK GRIDS with the thinner ribs facing upwards. When laying on large surfaces or in the presence of stringcourses or other elements delimiting the perimeter, leave empty spaces of about 3/5 cm for the natural dilatation of the material.
  4. FILLING OF THE GREEN PARK CELLS. The filling process must partially saturate the cells, the level reaching to 1 cm below the flooring’s upper border.
    Then sowing.

It is important to carry out an adequate evaluation of the local conditions of the soil. Our instructions are, in fact, in general terms and the preparation of the foundation must be suitable for the type of soil, the climatic conditions and the load intensity.

  • Working dimensions: cm: 58 x 58 x 4 h
  • Pieces per m2: pcs: ± 3
  • Weight per piece: kg/pcs: 1,796
  • Load capacity with empty cells: t/m2: 187
  • Load capacity with full cells: t/m2: 360
  • Water reserve: l/m2: 1,5
  • Colour:     green/white
  • Pallet dimensions: cm: 120 x 120 x 240 h
  • Pallet m2: m2/PAL: 140
  • Pallet pieces: pcs/PAL: 420
  • Pallet weight: kg/PAL: 768

Green: Grass chippings finish
White: Loose chippings finish
