Hydroflux - Model Vortex -VORMAX -Grit Chamber

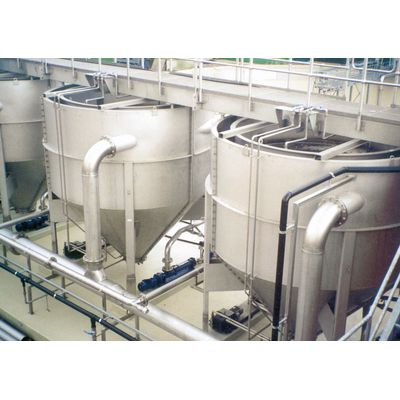

The HUBER Circular Grit Trap HRSF enhances grit separation through the rotational motion of wastewater. This process creates a separation effect by combining a vertical downward flow with centrifugal force, efficiently directing grit particles toward the inner tank surface, which serves as the primary separation area.
To maximise performance, the HRSF is equipped with an additional separation cone, increasing the effective separation area and ensuring highly reliable grit removal.
For improved organic separation, an optional aeration system can be integrated. The introduction of air keeps organic matter suspended, allowing it to be carried away with the water flow above the separator cone while the grit settles below.
Separated solids can be discharged either directly via an integrated classifying screw or pumped into a grit classifier for further processing.
The HUBER Circular Grit Trap HRSF was developed using advanced numerical design engineering and has been rigorously tested and validated under real-world conditions in collaboration with the German test institute LGA.
- Maximum separation efficiency due to additional separation area (separator cone)
- Throughput capacity up to 150 l/s (540 m³/h)
- Compact, space-saving unit
- Encapsulated, odour-free plant
- Completely made of stainless steel for high corrosion resistance
- Optional with integrated grit classifying screw, scum separator and aeration
