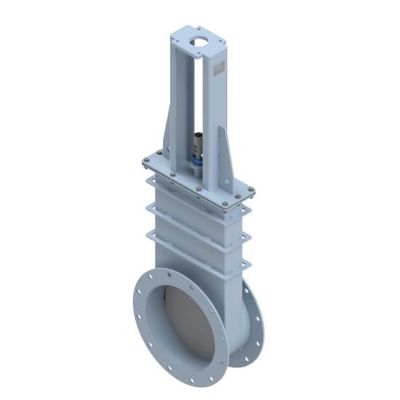

ARP - Model CG-M01 Series -Guillotine Damper Valve
FromARP Industry srl
Guillotine dampers are typically used to shut off gas flow in ducts for maintenance or for bypass purposes. The powered feed-screw moves the blade along the body guides. A scale with a position indicator is foreseen to check the blade position. Dimensions, cross section and connection can be according to customer requirements.
Most popular related searches
- Diameter range DN150 ÷ DN3000
- Max temperature 600 °C
- Interception or modulating service.
- CE marking
Operating conditions
- Design temperature –40°C ÷ 600°C
- Design pressure –0,1 barg ÷ +0,5 barg
Applicable standards
- Design EN 593, EN 12516, ASME B16.34
- Circular flanges EN 1092-1, ASME B16.5, others on request
- Rectangular flanges according to customer request
- Testing EN12266, ANSI/FCI70-2
Ends connections
- Circular or rectangular body:
- Bolted flanges
- Butt welded
Blade seals options
- Metal to metal – FCI 70-2 max tightness class II
- Soft sealing – FCI 70-2 max tightness class III
Valve actuation
Actuator types:
- Manual handwheel
- EN 15714-2 Electric actuators
- EN 15714-3 Pneumatic actuators
Shaft seals options
- Graphite braid packing
- Braid packing with lantern ring and air sealing
Materials
- Carbon steels.
- CORTEN A
- Wear resistant steel.
- EN 10028-2 steels for high temp.
- Ferritic, and austenitic stainless steels.
