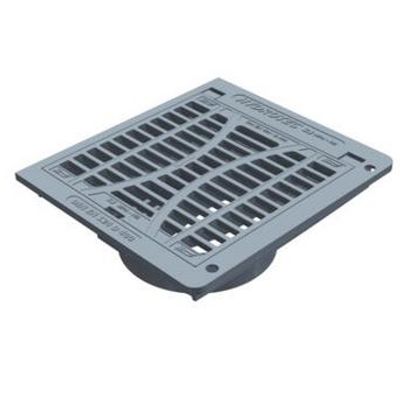

Hydrotec - Model ECON SN 500x500 D400 -Gully Top

FRAME

• self-levelling frame
• lies floating in the bitumen road surface and not in the shaft
• support for dirt catcher according to DIN 4052

HINGE

• simple ergonomic opening
• inspection position ca. 120°, grating removable ca. 90°

INSERT

• changeable, dampening HYDROpren-insert
• long life, high abrasion stability for extreme loads
• according to DIN 53505

• Loading class D 400
• Construction depth 200mm
• Inlet cross-section 950cm²
• Outer dimensions 626x555mm
• Weight 67 kg
• Pieces per pallet 16pcs.
• Material Cover cast iron
• Shape of grating flat
• Slot size 25mm
• Standard DIN EN 124-2
• Material frame cast iron
• Insert damping HYDROpren-insert
• Locking system spring locking system
• Hinge with
• Frame variation self-leveling frame
