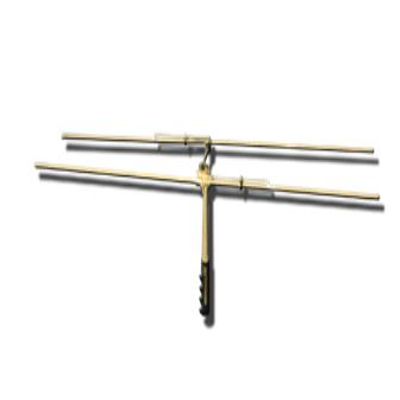

ATS - H Type Antenna
Lightweight and easy to carry for ground tracking. Antenna (ATS # is frequency dependent), 1.52 m (5 ft) RG58 cable (ATS #11606), 12” metal handle with grip (ATS #14912) -OR- 24” handle for aircraft (ATS #13917).
- Lightweight and easy to carry for ground tracking.
- Custom tuned to user-specified 4 MHz range.
- Includes 1.5 meter cable.
- Gain: 7 dBi
- Beamwidth (horizontal): 3db
- Beamwidth (vertical): 3db
- Weight, metal handle: 0.3 kg (0.55 lb)
- Weight, metal handle, 24 in.: 0.7 kg (1.6 lbs)
- Width: 25.4 cm (10 in.)
- Max. Element length: 100 cm (39.4 in.)
