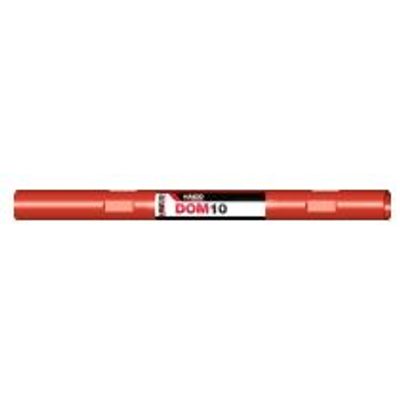

HalcoModel Dominator 10 -Air Hammer

SHARE

The Dominator 10 is designed for small diameter drilling operations and its superior performance makes it at least 50% faster than its nearest competitor. The valveless design of the Dominator 10 provides high performance at both low and high pressures.  The strong robust design withstands heavy duty applications and includes an N.R.V (Non Return Valve) which is fitted into the hammer to prevent flooding where ground water is present.

Most popular related searches
  • One piece top-adaptor reduces internal parts.  No makeup required. External N.R.V for easy maintenance.
  • Revised chamber volumes and cycle timing to optimize performance.
  • Simplified piston geometry for improved balance and location within the cylinder.
  • The Halco shank reduces contact stresses and wear rates.
  • Hammer Type: Dominator 10
  • Part Number: 600422
  • Shank: Halco Dominator 100
  • Top Thread: 40mm DIN 405 6 TPI BOX
  • Hammer Flat Size: 38mm (1.500")
  • Weight: 7Kg
  • Outside Diameter: 47mm (1 7/8")
  • Make Up Length: 772mm (30 3/8")
  • Recommended Maximum Thrust: 120Kg (264 lbs)
