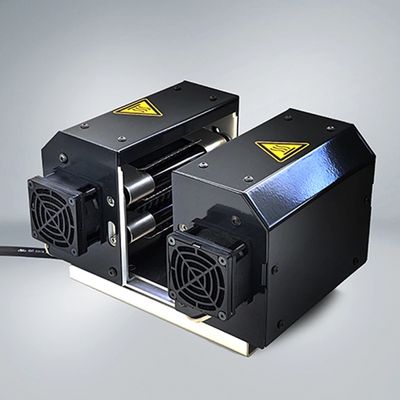

Komax BenchTop - Model IRES 60mm -Hand-Held Infrared Shrinking Appliance
The infrared shrinking appliance IRES is a stationary tool for processing large product diameters that require a wider shrinking zone – available in two different sizes. The BenchTop infrared shrinking appliance IRES is designed for stationary usage on workstations. With this appliance, users can easily and quickly shrink large product diameters, ensuring precise and high-quality results. It is available in two different sizes with either a shrinking zone size of 60 x 60 mm (2.36 x 2.36 in) or a even larger shrinking zone of 120 x 60 mm (4.72 x 2.36 in). It enables efficient and reliable processing of various components, including heat-shrink tubing, labeling sockets, heat-shrink components and modules, heat-shrink screening lattice, and other related materials. When you need to process heat-shrink materials, IRES is a reliable solution for your needs. The appliance requires the use of the digital control unit IRDC-2000 to function.
IRES 60mm
Metric
- Shrinking zone: 60 x 60 mm
- Power: 1200 W
- Emitters: 4
- Emitter angle: 20 °
- Emitter distance min.: 15 mm
- Emitter distance max.: 60 mm
- Emitter lifespan (estimate): 5000 hr
- Weight: ca. 2.2 kg
- Dimensions/length: 180 mm
- Dimensions/width: 255 mm
- Dimensions/height: 150 mm
- Cable length: 1500 mm
- Protection type: IP30
- Protection class: I
- Thermal safety: Class 0
- Ambient temperature min.: 0 °C
- Ambient temperature max.: 40 °C
- Air humidity non-condensing min.: 15 %
- Air humidity non-condensing max.: 85 %
Imperial
- Shrinking zone: 2.4 x 2.4 in
- Power: 1200 W
- Emitters: 4
- Emitter angle: 20 °
- Emitter distance min.: 0.6 in
- Emitter distance max.: 2.4 in
- Emitter lifespan (estimate): 5000 hr
- Weight: ca. 4.9 lb
- Dimensions/length: 7.1 in
- Dimensions/width: 10 in
- Dimensions/height: 5.9 in
- Cable length: 59 in
- Protection type: IP30
- Protection class: I
- Thermal safety: Class 0
- Ambient temperature min.: 0 °F
- Ambient temperature max.: 104 °F
- Air humidity non-condensing min.: 15 %
- Air humidity non-condensing max.: 85 %
