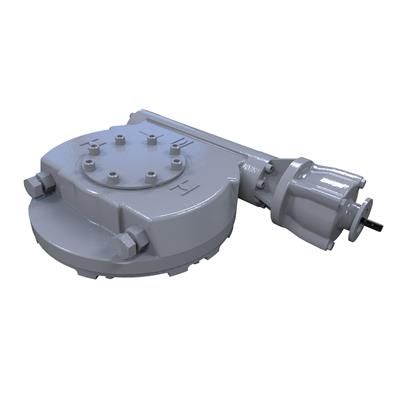

Rotork - Model HOW/MPR -Hand Operated Worm Gearbox
FromRotork plc
Hand Operated Worm Gearbox.
Designed to suit manual applications, the HOW/MPR worm gear operators are quarter-turn devices intended for the operation of ball, plug and butterfly valves.
The HOW/MPR gear operators include low lead angle gearing designed to be inherently self-locking.
Torque range from 39,000 Nm (28,765 lbf.ft) to 264,000 Nm (194,716 lbf.ft). 9 sizes. Ratios from 1229:1 to 7171:1.
Features include: Carefully chosen ratios to meet manual rim effort requirements, protected steel input shaft, removable output sleeve, ductile iron gearcase, angular contact bearings supporting worm shaft and a repositionable baseplate facility.
Options include: High and low temperatures, stainless steel input shaft, all types of environment, limit switches, fixed and flexible extensions and chain wheels.
