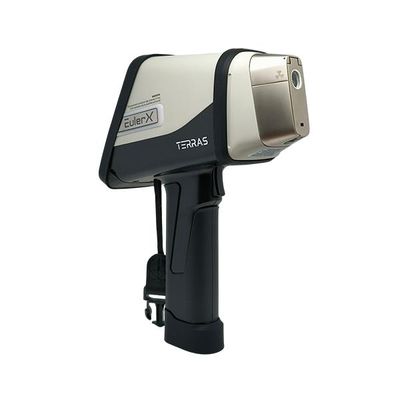

Terras - Model EulerX 900 Series -Handheld Alloy Analyzer
The EulerX 900 series stands out as a premier option for metal analysis across various industries, offering quick and precise results comfortably in the palm of your hand.
- The use of XRF spectrometry has been a cornerstone in metal analysis for decades, valued for its efficiency and reliability. It serves as a crucial quality control instrument in numerous metal processing environments, prized for its portability, which allows for testing anywhere and anytime, and its user-friendly operation and maintenance.
- The EulerX 900 series has proved to be an excellent choice for metal analysis in a wide fields, providing fast, accurate results directly to the user. Thanks to its cutting-edge electronics and sophisticated mathematical algorithms, the EulerX 900 series ensures superior measurement quality within seconds. This makes it an ideal tool for inspecting and analyzing incoming materials, finished products, and in-process production parts in a non-destructive manner. Its simplicity of operation allows users to quickly view alloy grade and chemical composition on the touch screen display, achieving laboratory-quality analysis with minimal training and virtually no need for sample preparation, regardless of the sample is shape or size.
- The applications of the EulerX 900 handheld are extensive, covering not only solids but also liquids and powders. The EulerX 900 series handheld alloy analyzers are extensively utilized for alloy grade identification and quality control, scrap metal recycling, precious metals analysis, PMI, and more.
Fast Results
The EulerX 900 is algorithm leverages the advanced fundamental parameters method (FP), identifying alloy grades in just 1-2 seconds after activation.
Nondestructive Analysis
The X-ray technique preserves the integrity of the samples, unlike destructive testing methods.
Easy to Operate
Designed for ergonomic comfort, the device is lightweight, compact, and well-balanced for handheld use. A high-capacity battery allows for 10-12 hours of continuous on-site testing without the need for recharging.
Minimal Maintenance Cost
Features an anti-puncture window that effectively protects the device`s front end. Its rugged design includes IP54 standard dust and water resistance, ensuring normal operation in temperatures ranging from -10°C to 50°C.
Minimal Training
The device is design simplifies operation, requiring minimal training. The icon-based user interface is intuitive and straightforward.
- Excitation: Ceramic packaged microfocus X-ray tube Ag target tube,50kV
- Detector: High performance Si-Pin detector /Optimized SDD detector
- Filter: Smart multi position filter design
- Window: Kapton with anti-puncture window design optional
- Collimator: 5mm collimator/3mm collimator optional
- Battery: 7.2V Li-ion battery,6800mAh
- Display: Capacitive touch color display
- Data storage: 100000+data storage
- Data transfer: WiFi?USB
- Radiation safety: Safety guard device, tube shutoff while no sample , password-protected user security
- Camera(optional): Integrated CCD camera with autofocus lens for positioning and recording measuring point positions
- Elements: Sb, Sn, Ag, Pd, Al, Mo, Nb, Zr, Bi, Pb, Se, W, Zn, Cu, Re, Ta, Hf, Ni, Co, Fe, Mn, Cr, V, Ti, Mg, Si, P, S(these four light elements can only be detected in the EulerX 900S) etc.more elements can be added
- Environment Temp: -10°C~50°C Humidity 0%~80%
- Weight: Approx. 1.5kg (3.3lbs) including battery
- Dimensions: L x W x H: 220mm*91mm*276mm
- Software language: English and other languages
