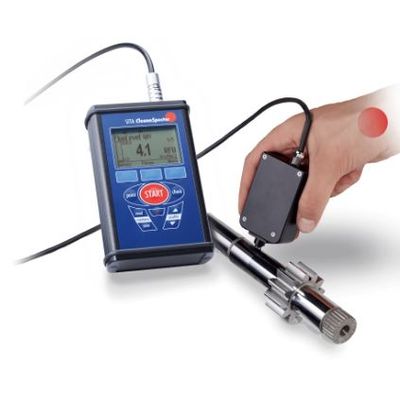

SITA - Model CleanoSpector -Handheld Device for Contactless Cleanliness Inspection
The SITA CleanoSpector is a handheld device designed for the contactless cleanliness inspection of parts' surfaces. It is essential for maintaining product quality in follow-up processes like adhesive bonding, coating, welding, and hardening by detecting unwanted film contaminants such as oils, greases, cooling lubricants, and release agents. The device operates on the principle of fluorescence, where UV light is radiated onto the surface, causing contamination to fluoresce. The intensity of the fluorescence, measured in Relative Fluorescence Units (RFU), correlates with the layer thickness of the contamination. A lower RFU denotes cleaner surfaces. The SITA CleanoSpector is user-friendly and can be integrated directly into the manufacturing process for real-time quality assurance. Optional software, SITA-ProcessLog, provides convenient access to all functionalities and data on a PC. Various accessories for contact-free measurement and device maintenance are available to complement this instrument.
The hand-held measuring device SITA CleanoSpector is used for Cleanliness inspection of parts to ensure product quality and follow-up processes such as adhesive bonding, coating, welding, hardening and bonding.
Unwanted Filmic contamination such as oils, greases, cooling lubricants and release agents are detected by measuring the Fluorescence intensity.
The easy to use SITA CleanoSpector is suitable for quality assurance directly in the manufacturing process.
- Mobile and robust device for flexible use at the process and in the laboratory
- Intuitive operation: simple and fast measurement at the push of a button
- Device with easy to handle sensor head and display unit enables measurement of even small parts or complex geometries
- Check and adjustment with working standards
- Quantity : Fluorescence intensity in RFU
- Fields of application : Cleanliness inspection before gluing, painting, coating, welding, hardening, bonding Coating thickness inspection for corrosion protection oils, primer application before gluing
- Use : Detection of oil, grease, cooling lubricant, parting agents, … on parts and assemblies made of metal, ceramics and glass (only partially suitable for plastics)
- Measurement : Contact free, non-destructive, in-line capable, thickness sensitive
- Measurement monitoring : SITA fluorescence standards (standard scope of delivery and option)
- Industry : Automotive, machine construction, mechanical engineering, medical technology, electrical engineering, surface technology, aerospace …
For 15 years, the SITA CleanoSpector is used successfully and worldwide in a wide range of applications and industries:
- Cleanliness inspection of metal parts after processing with production aids (monitoring, optimisation and control of cleaning processes)
- Inspection of functional surfaces after selective cleaning (laser cleaning, ultra-fine plasma cleaning, CO2 snow blasting, ...)
- Inspection for residues of release agents on aluminium die-cast parts before adhesive bonding
- Monitoring the cleanliness of gear parts before laser welding
- Inspection for filmic contamination on parts in medical or vacuum technology
- Detecting flux residues and contamination through sealing compound in electronics production
- Surface inspection on electrical contacts after stripping of isolation material
- Inspection for sufficient layer thickness when applying corrosion protection oils or when applying a primer
Fluorescence intensity
- Measurement range : 0...2.000 RFU (Relative Fluorescence Unit)
- Measurement deviation : max 0.5% of the measurement range
- Resolution : 0,1 RFU
Sensor parameters
- Excitation : 365 nm, max. 150 mW
- Detection* : 460 nm
- Measuring point* : D=1 mm
- Measuring distance* : 4,7 mm
- * standard values :
Cleanliness
- Measuring range : 0...100 %
- Resolution : 0,1 %
Layer thickness
- Measuring range : user-defined
Power supply
- Li-Ion-battery : 3.6 V/1,950 mAh, min. 8 h operating hours
- Mains adapter / USB : 100...240 V / 5 V
- Power consumption : max. 2,5 W
General data
- USB : Data transfer
- Display : LCD, illuminated
- Measuring profiles : 254
- Memory : 8.000 measuring values per profile
- Dimensions (HxWxD) : Hand-held device: 129x82x48 mm Sensor head: 95x50x30 mm
- Weight (device) : 530 g
