madur Polska Sp. z o.o.

- Model GA-12 - Handheld Gas Analyser

From

0

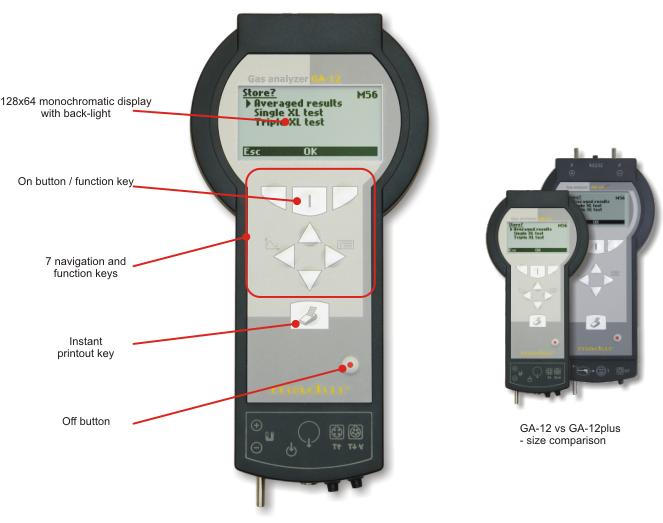

GA-12plus hand-held analyser that can be equipped with up to 4 EC cells. Larger cousin of GA-12 analyser that share very similar functionality and options. Thanks to larger housing fits more sensors, is equipped with Li-ion battery by default. Manufactured according to the principles of EN50379.

  • Equipped with 2 or 3 electrochemical cells (typical configuration: O2, CO, NO/NOx)
  • Works with an external portable printer via wireless communication (IR LED)
  • Up to 60 hours of work (version with replaceable alkaline batteries)
  • Fixed probe of two different lengths with inline filter and condensate trap
  • Differential pressure sensor - for measurements of chimney draft and flow velocity (with help of Pitot tube)
  • Cooperation with digital RH and temperature sensors
  • Measurements of gas and ambient temperatures

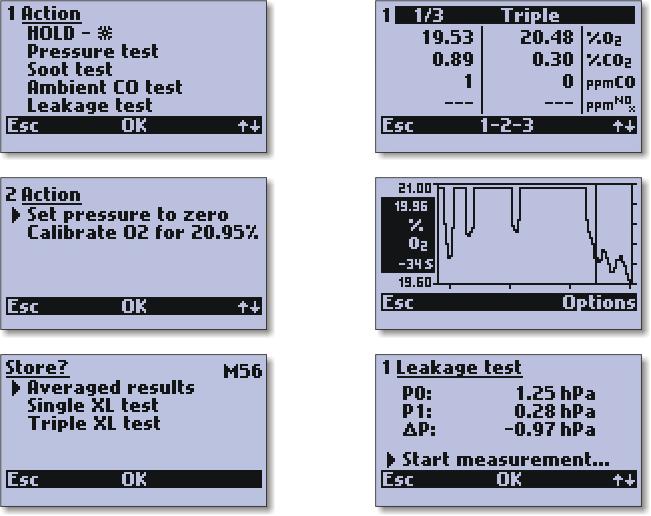

  • Results presented on LCD display (128x64) with backlight
  • Built-in large memory for results saving
  • Calculations of many additional parameters
  • Firmware for gas calibration

Two versions of power supply are possible:

  1. version with four replaceable AA batteries (alkaline, Ni-Cd or Ni-MH)
  2. version with built-in Li-ion rechargeable battery and aditional mains adapter for battery charging
