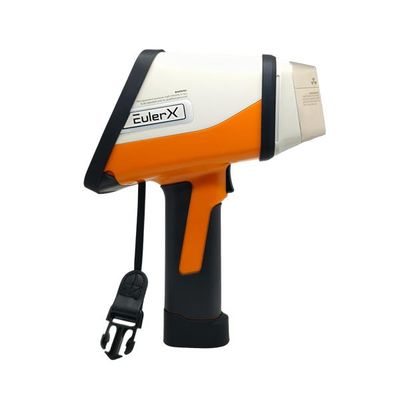

Terras - Model EulerX 990 Series -Handheld Gold Analyzer

• EulerX 990 Handheld Gold Analyzer---- Fast Ascertain the Purity of Your Precious Metals
• The EulerX 990 is a cutting-edge handheld gold analyzer equipped with a ceramic packaged microfocus X-ray tube and a high-performance semiconductor detector. Utilizing advanced software algorithms, it can perform quick, accurate, and non-destructive testing of gold, silver, platinum, and other precious metals in jewelry, enabling the rapid identification of their purity. This makes the EulerX 990 an essential tool for assessing the quality of jewelry, investment gold, and other precious metal commodities.
• The EulerX 990 is Perfectly Suited for: Precious Metals Recycling: Offers precise analysis and identification of purity and concentration in recycled or recovered precious metals.
• Jewelry Dealers and Makers: Aids in the procurement and identification of precious metal materials, authenticity verification, and purity analysis of gold and silver jewelry.
• Pawnshops: Utilized for gold authenticity verification and purity testing of precious gold and silver jewelry as well as investment gold.
• Quality Inspection Agencies: Employed in the determination of precious metals purity, including gold and silver.
• Industrial Precious Metal Catalysts: Critical for the gold refining industry, monitoring gold concentration in activated carbon, and testing precious metals like platinum (Pt), rhodium (Rh), and palladium (Pb) in automobile three-way catalyst recovery. It is also used for analyzing recycled precious metal catalysts in the chemical industry.

Rapid and Precise

Delivers fast, accurate, and dependable precious metals analysis, with results displayed in mere seconds.

Karat Display

Features a large, high-definition touch screen with a graphical interface, offering intuitive test results and Karat value display.

Safe and Non-destructive

Ensures non-destructive testing of gold and jewelry, equipped with an automatic radiation protection device for operator safety.

User-friendly and Portable

Designed for simplicity and ease of use, requiring minimal training. Its compact design makes it easily portable for on-the-spot precious metal testing.

• Excitation: High performance Ag target tube,50kV
• Detector: High performance Si-Pin detector /Optimized SDD detector
• Filter: Smart multi position filter design
• Window: Kapton with anti-puncture window design optional
• Collimator: 5mm collimator
• Battery: 7.2V Li-ion battery,6800mAh
• Display: Capacitive touch color display
• Data storage: 100000+data storage
• Data transfer: WiFi?USB
• Radiation safety: Safety guard device, tube shutoff while no sample , password-protected user security
• Camera(optional): Integrated CCD camera with autofocus lens for positioning and recording measuring point positions
• Elements: Ag, Pd, Rh, Ru, Au, Pt, Ir, Zn, Cu, Re, Ta, Hf, Ni, Co, Fe, Ti and more can be added if required
• Environment Temp: -10°C~50°C Humidity 0%~80%
• Weight: Approx. 1.5kg (3.3lbs) including battery
• Dimensions: L x W x H: 220mm*91mm*276mm
• Software language: English and other languages
