Kanomax - Model Climomaster 6501 Series -Handheld Hot-Wire Anemometer

Versatile and Interchangeable Probe Options

This anemometer boasts remarkable flexibility with a suite of eight different probe types, each meticulously designed for specific environments. Whether it’s measuring temperature, humidity, turbulent or high-velocity airflow, or in confined spaces like circuit board cooling profiles, these probes are fully interchangeable with a single main unit, requiring no additional calibration, thus ensuring seamless adaptability.

Robust Data Management

With a substantial storage capacity for 20,000 records and advanced data logging capabilities, the Climomaster 6501 ensures detailed and extensive data collection. For enhanced functionality, optional features like a pressure sensor and analog output are available upon request.

Designed for Various Applications

The Climomaster 6501 is the go-to instrument for a range of critical applications. Its diverse utility spans HVAC Testing, Indoor Air Quality (IAQ) Investigations, Critical Environment Certification, HEPA Filter Performance Testing, Turbulent Air Testing, and Manufacturing Process Controls.

Comprehensive Accessory Range

To bolster its performance, the Climomaster 6501 Series comes with an array of additional accessories. These include software for data analysis, extension rods for hard-to-reach areas, a hands-free case for convenience, and specialized cable lengths to suit varied requirements.

Automatic Barometric Pressure Compensation

A standout feature of the Climomaster 6501 is its automatic barometric pressure compensation. This ensures that the device maintains its high accuracy even in extreme altitudes, making it a reliable tool in diverse environmental conditions.

• Its sleek, ergonomic design with anti-slip grip comes standard with a highly visible backlit display making it the handheld choice of Journeymen technicians in the field.
• Stores up to 20,000 data points which is easily downloaded to your company computer for analysis via the USB interface.
• The optional software allows the users to view real-time data graphically formatted on their company computer
• For your convenience the anemometer keeps track of its own calibration cycle and reminds you when it is due for calibration*.

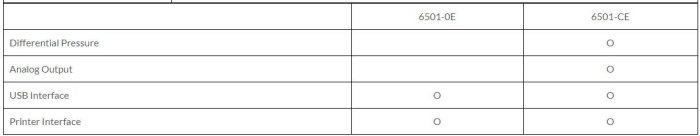

• The Climomaster 6501-CE measures pressure and features an analog output.
• Equipped with an automatic atmospheric pressure compensation function.

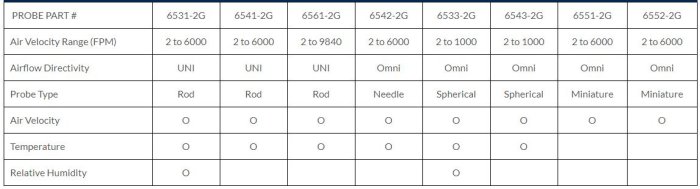

• When the direction of the airflow is known, choose a unidirectional probe.
• When the direction of the airflow is unknown or turbulent, choose an omnidirectional probe.

Measurement Specifications

Differential Pressure

• Range: -5 to 5 kPa
• Resolution: 0.01 kPa
• Accuracy: ±3% of READING or ±0.01 kPa whichever is greater

General Specifications

• Analog Output: DC 0 to 1 V
• Interface: USB / Printer
• Datalogging: Stores up to 20000 measurement data
• Power Supply: 6 × AA Batteries or AC Adapter (AC 100 to 240 V , 50/60 Hz)
• Weight: 0.9 lbs (400 g)
• Operating Environment: 41 to 104°F (5 to 40°C) with no condensation
• Storage Environment: 14 to 122°F (-10 to 50°C) with no condensation
• Standards: CE-mark
• Warranty: 2 year
• What’s Included: Meter, Operation manual, Carrying case, USB cable, AA batteries, 2m probe cable
