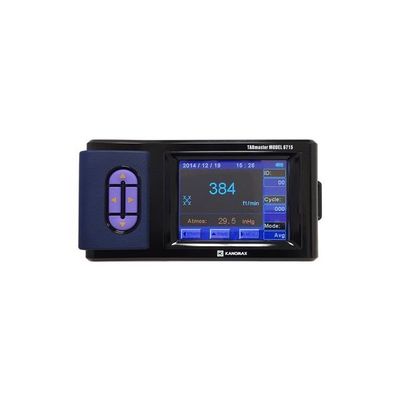

KanomaxModel 6700-VG -Handheld Micromanometer

SHARE

6700-VG Micromanometer Kit With Velocity Grid. Standard with Bluetooth™ wireless capability which allows you to send your data to your ANDROID™ device. Supply and exhaust. Memory and Averaging. It measures airflow and pressure readings with a pitot tube or velocity grid. Displays in both imprerial and metric units. Velocity Grid, Airfoil and Pitot tube mode. Velocity and Pressure. Auto -Range and Zero. Air Density corrected. BRIGHT color display. Dual durometer non-slip durable plastic case. Comes with hands-free neck strap. NIST Traceable Calibration Certificate*.

Most popular related searches
  • High resolution pressure measurement
  • Average airflow measurement
  • Store multiple measurements under a single ID#
  • Visible full-color display
  • HVAC Testing, Adjusting, and Balancing
  • Critical Environment Certification
  • HEPA Filter Performance Testing
  • Manufacturing Process Control

Measurement Specifications

  • Airflow
    • Range: With Pitot Tube: 30 to 7874 FPM (0.15 to 40 m/s)
    • With Velocity Grid: 30 to 2952 FPM (0.15 to 15 m/s)
  • Accuracy: +/- 3% of READING +/- 0.05 m/s
  • Pressure
    • Range: -10 to 10 in. w.c. (-2500 to 2500 Pa)
    • Accuracy: +/- 1.5% of READING +/- 0.25 Pa
  • Absolute Pressure
    • Range: 20 to 38 in. Hg (70 to 130 kPa)
    • Accuracy: +/- 2% of READING
  • General Specifications
    • Interface: USB, Bluetooth
    • Velocity Grid Size: 11″ x 11″ (for 1 square foot area)
    • Datalogging: 8,000 measurements
    • Power Supply: 4 x AA Batteries or AC Adapter
    • Standards: CE-mark
    • Warranty: 1 year
  • KIT PART NUMBERS
  • 6700: Meter, Pressure tubing (2 x 120 cm), PC communication cable, Shoulder/Neck Strap, Data processing software, Operation manual,NIST TRACEABLE CALIBRATION certificate, Smartphone App
  • 6700-VG: Meter, Velocity Grid, Pressure tubing (2 x 120 cm), PC communication cable, Shoulder Strap, Data processing software, Carrying case, Operation manual, NIST TRACEABLE CALIBRATION certificate, Smartphone App
