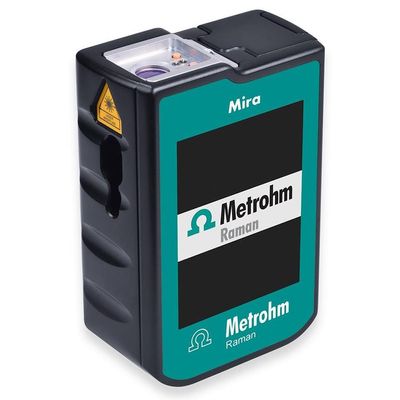

Metrohm - Model Mira P Basic - 2.927.0010 -Handheld Raman Spectrometer
The Metrohm Instant Raman Analyzer (MIRA) P is a high-performance, portable Raman spectrometer used for rapid, nondestructive determination and verification of different material types, such as pharmaceutical APIs and auxiliary materials. Despite the small size of the instrument, the MIRA P is highly ruggedized and features a high-efficiency spectrograph equipped with our unique Orbital-Raster-Scan (ORS) technology. The MIRA P complies with the directives of FDA 21 CFR Part 11 in their entirety.
MIRA P Basic package allows the user to customize the MIRA P to meet their needs. The MIRA Basic package is a starter package that contains the basic components required for operating the MIRA P.
The basic package contains the MIRA calibration/verification accessories, the USP library, and the LWD attachment for analyses in bottles or bags. Laser Safety Class 3B operation.
- Laser Wavelength (nm): 785.0
- Laser class according to EN 60825-1: Mira P Basic Class 3B
- Laser output power (mW): ≤ 100 mW
- Spectral Range (cm?¹): 400-2300
- Resolution (cm?¹) (FWHM): 8-10
- Touchscreen Display: 3.7" resistive
- Barcode Scanner: true
- Weight (grams): 752.0
- Length (mm): 128.0
- Width (mm): 88.0
- Height (mm): 45.0
- Battery life (h): ≥ 4 h (with recommended batteries)
