Metrohm - Model Mira M-3 -Handheld Raman Spectrometer for Advanced Package
FromMetrohm AG

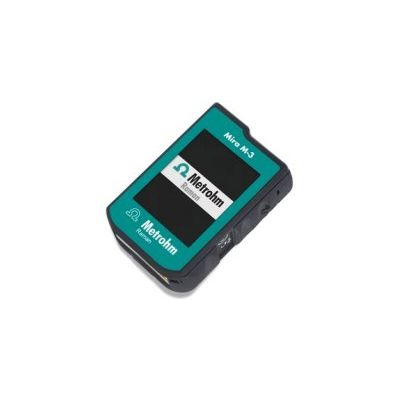

The Metrohm Instant Raman Analyzer (MIRA) M-3 is a high performance, handheld Raman spectrometer used for rapid, nondestructive identification and verification of different material types, such as Pharmaceutical APIs and excipients. Despite the small size of the instrument, the M-3 has a ruggedized design and features a high-efficiency spectrograph design equipped with our unique Orbital-Raster-Scan (ORS) technology. The Mira M-3 is fully compliant with FDA 21 CFR Part 11 regulations.
Most popular related searches
handheld raman spectrometer
orbital raster scanning (ORS)
handheld raman
raman spectrometer
portable spectrometer
raman
spectrometer
raman analyzer
glass container
The Advanced Package includes an attachment lens for analyzing materials directly or through containers (laser Class 3b), as well as a vial holder attachment for analyzing materials contained in glass vials (laser Class 1).
- Barcode Scanner: true
- Battery life (h): ≥ 4h (with recommended batteries)
- Height (mm): 45.0
- Laser class according to EN 60825-1: Mira M-3 Basic Class 1
- Laser output power (mW): ≤ 100 mW
- Laser Wavelength (nm): 785.0
- Length (mm): 128.0
- Resolution (cm⁻¹) (FWHM): 14-16
- Spectral Range (cm⁻¹): 400-2300
- Touchscreen Display (inches): 3.7" Resistive or 9.4 cm
- Weight (grams): 752.0
- Width (mm): 88.0
