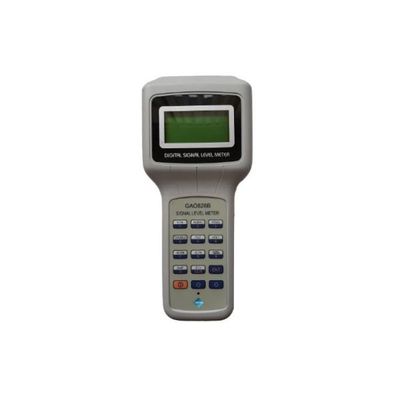

GAOTek - Model A0N00004 -Handheld Signal Level Analyzer with CATV Testing

• Measures CATV TILT, C/N, trunk cable voltage
• Tests CATV signal levels in both (SCAN) and frequency (SPECTRUM) modes
• Equipped with channel plan selection, channel amending, channel sorting and channel editing functions
• Automatic off function to save power when not in use
• Stores 24 groups (100 channels per group)
• Large LCD display

• Frequency Range : 5 MHz to 870 MHz
• Resolution Bandwidth : 280 kHz ± 50 kHz
• Level Range : 30 dBμV to 120 dBμV
• Accuracy : ±1.5 dBuV (indoor temperature); ±2.5 dBuV
• 14 °F – 14 °F (-10 °C to 40 °C)
• Input Impedance : 75 Ω (BNC or F connector)
• Max Channel Scan : 125 Channels
• Scan Range : All Channels within 5 MHz to 870 MHz
• Scan Speed : 30 Channels/Min
• Memory Groups : 24 groups, each group can store Max 100 Channels

Voltage Testing

• Voltage Range : 0 to 100 V AC
• Accuracy : ±1.5 V
• Resolution : 0.1 V

C/N Testing (optional)

• Level Range : 80 dBuV to 105 dBuV

Others

• Dimension : 8.46 in x 3.74 in x 1.85 in (215 mm x 95 mm X 47 mm)
• Weight : 1.34 lbs (610 g) without charger
• Operating Temperature : 5 °F to 104 °F (15 °C to 40 °C)
• Display LCD : 128 × 64 Matrix Super Large LCD with the back-light capability
• DC Supply : DC 7.2 V/1.4 Ah rechargeable battery
• AC Supply : AC 110/60 Hz to 220 V/50 Hz (±10%)
• Battery Life : longer than 3.5 hours at the continuous working mode
• Recharging hours : 12 to 14 hours

Accessories

• Battery Charger : charger x 1 pc
• RF Input Port : F type 2 pcs
