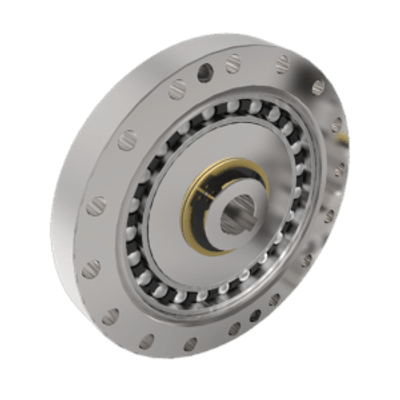

Cone Drive Harmonic Solutions - Harmonic Gearing for Precision Motion Control

SHARE
Cone Drive's harmonic gearing is designed with zero to low backlash, providing high transmission accuracy and supporting significant ratio reduction in a single stage while maintaining low inertia. The design, known for its torque density and precision, is ideal for motion control applications requiring utmost accuracy. Cone Drive manufactures a variety of strain wave gearing options, including ring, cup, and hat styles, as well as component sets and gearheads. The solutions are custom-built in a controlled environment, ensuring reliability with competitive lead times. These harmonic gears are capable of enduring various stresses, with features such as low to zero backlash, high transmission accuracy, and options for customization. Cone Drive offers additional support through detailed specifications, materials information, and lubrication recommendations for optimal performance.
Most popular related searches
precision motion control
controlled environment
hybrid stepper motor
built environment

Cone Drive’s harmonic gearing is zero to low backlash by design.  It provides high transmission accuracy and can support a high ratio reduction in a single stage with low inertia. The highly accurate, torque dense design makes harmonic gears the perfect solution for ultimate precision motion control applications.

We manufacture a wide range of strain wave gearing options in our line of Cone Drive Harmonic Solutions®.

  • Ring, Cup, and Hat Styles Available
  • Component Sets and Gearheads
  • Low to Zero Backlash
  • High Transmission Accuracy
  • Customizations Available Upon Request
  • Manufactured and Assembled in Controlled Environment
  • Competitive Lead Times
  • 1 Year Warranty
  • Sizes: 11 thru 32
  • Ratio: 50:1 thru 160:1
  • Nominal Backlash: < 1 mRad
  • Continuous Output Torque: < 172 Nm
  • Peak Output Torque: < 824 Nm
  • Standard Input Options: Keyed or set screws (including Oldman style coupling)
  • Custom Input Options: Throughbore, solid input, dowel pins, tapped holes, piloted stepper/servo motor ready, special materials and coatings
  • Configurations: Component gearset or gearhead, sealed, throughbore, lightweight, and other options available
