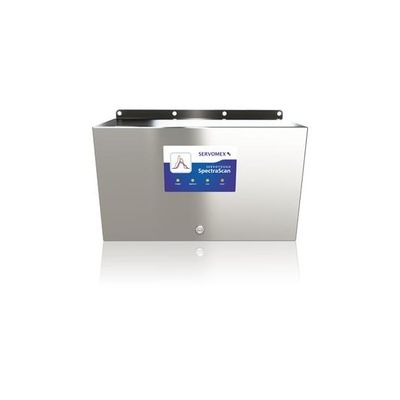

Servotough SpectraScan - Model 2400 -Hazardous Area Gas Analyzers
Tunable filter infrared absorption on-line gas analysis platform ideal for the measurement of light hydrocarbons. The SERVOTOUGH SpectraScan is a real-time Tunable Filter Infrared analyzer capable of accurately separating light hydrocarbon components.
Using a unique wavelength scanning tunable filter spectrometer, fast update rates are performed for C1 through C6 analysis. Sampling is a continuous flow-through type, suitable for on-line, unattended operation, while the analyzer does not require carrier gas or high maintenance.
The SpectraScan utilizes a Precisive optical bench which is used extensively in the field. Configurable to meet the specific needs of various applications, the SpectraScan is ATEX, CSA, and IECEx hazardous rated with a standard data interface using MODBUS TCP/IP.
- C1 to C6 analysis
- Continuous, real time analysis
- Permanent span calibration
- BTU,CV and wobble index
- CO, CO2, H2S
- Remote, unattended continuous operation
- Pre-configured for optimum performance
- Eliminates carrier gases
- Fixed hardware configuration ensures low maintenance costs
- Very low zero drift
- No columns or microvalves to maintain
- Permanent span calibration
- Low cross-sensitivity
- High resolution
- Fast responseFast response <4s T90
- Low maintenance
- North Amercian Cat 1, Div. 2 ATEX Cat 3 IECEx Zone 2
- Natural gas quality and composition
- BTU/Wobbe content measurement
- Fuel blending and control
- Gas turbine, engines, fuel cells
- Alternative (biogas, syngas) fuels
- LNG production and custody transfer
- Hydrocarbon speciation applications
Ensure your SERVOTOUGH SpectraScan 2400 light hydrocarbon analyzer delivers optimum performance with Servomex Service Network.
Through our global network of engineers and service centers, we provide complete lifetime support for your analyzer. Our services range from installation and commissioning to supplying high quality spares and arranging scheduled servicing: visit our Service Network pages to find out more.
