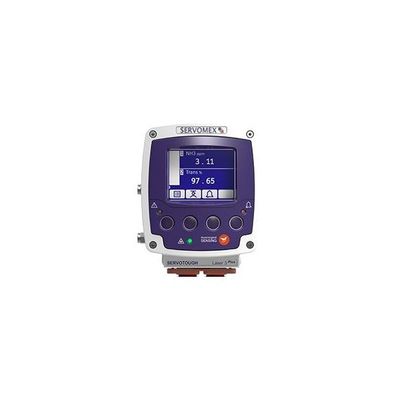

Servotough - Model Laser 3 Plus Ammonia -Hazardous Area Gas Analyzers
Compact TDL analyzer offers unique features low cost of ownership, with fast response to measuring ammonia in DeNOx applications. The SERVOTOUGH Laser 3 Plus Ammonia is a revolution in Tunable Diode Laser Absorption Spectroscopy analysis: a highly compact gas monitor for in-situ cross-stack applications, which delivers exceptional performance benefits in a revolutionary compact design.
Servomex’s pioneering approach to design has produced an analyzer that occupies a footprint up to 1/10th the size of competitor products. This provides instant benefits in terms of installation ease and flexibility.
The SERVOTOUGH Laser 3 Plus Ammonia delivers exceptional TDL performance, with a fast response to measuring ammonia in DeNOx applications. Utilizing the latest Wavelength Modulated Spectroscopy (WMS) measurement techniques with unique Servomex signal processing, the Laser 3 Plus Ammonia provides the most stable, repeatable results with minimal installation and maintenance costs.
- Compact design
- Performs in high particulate environments
- Path lengths from 1m to 10m - dust level dependent
- Minimal cross interference
- Diverse mounting: ideal for ducts and stacks
- Simple to install and operate
- Robust and reliable
- 0-15ppm min. range
- Space saving
- Digital communications: Modbus, Ethernet
- User friendly interface rapid disconnect for easy calibration
- Small, light intuitive alignment for easy installation and maintenance
- Non-depleting TDL technology requires no replacement
- No moving parts, no consumables
- No sampling system reduces maintenance costs
- Process temperatures up to 600°C
- Low detection limit
- Negligable zero drift
- ATEX, IECEx hazardous area approvals
- North American hazardous area approvals pending
- CE approved
- Wide process ambient temperature range
- IP66
- TRANSMITTER:
131mm width (51/8”) 164mm high (61/2”) 302.4mm deep (119/10”)
- RECEIVER:
110mm width (45/16”) 146mm high (53/4”) 247.6mm deep (93/4”)
- TRANSMITTER:
- RECEIVER:
- ATEX Cat 3 (Gases)
- IECEx Zone 2 and Zone 21
- North American Class 1 Division 2 and Zone 2 (Gas and Dust) pending
- ATEX Cat 21 (Dust)
- Safe Area / General Purpose
- CE marked in compliance with ATEX, EMC, LVD and all other applicable directives
- Process heaters
- Incinerators
- Thermal crackers
- Thermal oxidizers
- Power stations
- Furnaces
Ensure your SERVOTOUGH Laser 3 Plus Ammonia analyzer delivers optimum performance with Servomex Service Network.
Through our global network of engineers and service centers, we provide complete lifetime support for your analyzer. Our services range from installation and commissioning to supplying high quality spares and arranging scheduled servicing: visit our Service Network pages to find out more.
