ENMET - Model HAZMATCAD Series -Hazardous Material Chemical Agent Detector
FromENMET, LLC

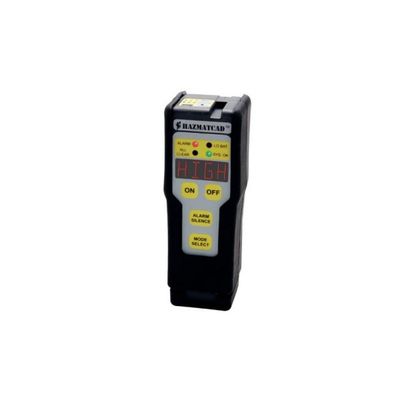

HAZMATCAD™ Series is a handheld instrument that detects and classifies chemical warfare agents, Nerve (G) and Blister (H). When compared to other chemical agent technologies HAZMATCAD™ is designed to be reliable, fast to start up, easy to operate and avoid false alarms from non-target chemicals in the urban environment. The HAZMATCAD™ offers two modes of operation, one for fast response and general operation and one for high sensitivity, lowering the sensitivity threshold by approximately 10 times the fast response level.
Most popular related searches
chemical warfare agent detector
chemical agent
chemical agent detection system
chemical warfare agent
HAZMAT chemical
bump testing
chemical detection system
hydrogen cyanide
chemical warfare agent detection
hazardous materials
- Compact, lightweight, handheld
- Fast warm up
- Agent specific detection
- Dual mode operation
- Fast mode
- High sensitivity mode
- Requires no calibration
- Bump test accessory
- Data log
- Weight: 0.63Kg – 22 oz (including batteries)
- Dimensions: 5.8×6.2×19.8 cm or 2.3×2.5×7.8 inches
- Warm Up: <3 minutes
- CW Agents Detected: VX, GA, GB, GD, HD, HN3, AC
- Alarm Levels Nerve:
- Fast Mode: 0.3 to 0.9 mg/m3 or 0.04 to 0.14 ppm
- High Sensitivity Mode: 0.06 to 0.18 mg/m3 or 0.01 to 0.03 ppm
- Alarm Levels Blister:
- Fast Mode: 1.4 mg/m3 or 0.2 ppm
- High Sensitivity Mode: 0.28 mg/m3 to 0.04 ppm
- Battery Type: Li Ion
- Mission Life:
- Fast Mode: 8 hours
- High Sensitivity Mode: 12 hours
- Audible Alarm: 85dB at 0.1 m
- Operating Temperature: 0° to 40°C or 32° to 105°F
- Operating Humidity: 0-95% non-condensing atmosphere
- Warranty: 1 year parts and labor
Nerve Agents:
- GA (Tabun)
- GB (Sarin)
- GD (Soman)
- GF
- VX
Blister Agents:
- HN3 (Nitrogen Mustard)
- HD (Sulfur Mustard)
Blood Agents:
- AC (Hydrogen Cyanide)
